How to Prevent Keystroke Injection Attacks, Protect Android Apps

Last updated November 7, 2023 by Appdome

Learn to Prevent Keystroke Injection in Android apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

What is Keystroke Injection?

Keystroke injection is an attack method whereby a hacker uses one of several techniques to take control over Android apps remotely and inject keys, keystrokes, or manipulate gestures (for example: swipe left and right) to commit mobile fraud during runtime. While this attack technique is primarily used for committing ad fraud or mobile game fraud, it can also be utilized as part of ransomware and other elaborate fraud schemes. Keystroke injection is accomplished either by using Android Debug Bridge (ADB) via USB, or via a separate malicious app that runs on the device and has app permissions enabled that allow key injection. Users are usually tricked by hackers into downloading malicious apps through social engineering and other techniques, and into enabling key injection permissions via overlay attacks.

Why Prevent Keystroke Injection in Android Apps?

Keystroke Injection is an indication of malicious activity, intended for committing ad fraud or mobile game fraud, or even worse, as part of a ransomware and other elaborate fraud schemes. As such, Keystroke injection should be blocked to prevent having malicious actors gain access to, or even control of your device.

Prerequisites for Using Prevent Keystroke Injection:

To use Appdome’s mobile app security build system to Prevent Keystroke Injection , you’ll need:

Prevent Keystroke Injection on Android apps using Appdome

On Appdome, follow these 3 simple steps to create self-defending Android Apps that Prevent Keystroke Injection without an SDK or gateway:

  1. Upload the Mobile App to Appdome.

    1. Upload an app to Appdome’s Mobile App Security Build System

    2. Upload Method: Appdome Console or DEV-API
    3. Android Formats: .apk or .aab
    4. Prevent Keystroke Injection Compatible With: Java, JS, C++, C#, Kotlin, Flutter, React Native, Unity, Xamarin, Cordova and other Android apps
  2. Build the feature: Prevent Keystroke Injection.

    1. Building Prevent Keystroke Injection by using Appdome’s DEV-API:

      1. Create and name the Fusion Set (security template) that will contain the Prevent Keystroke Injection feature as shown below:
      2. fusion set that contains Prevent Keystroke Injection

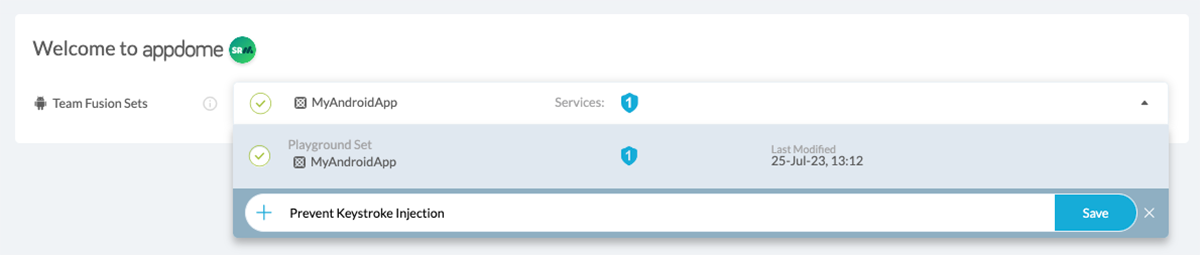

        Figure 1: Fusion Set that will contain the Prevent Keystroke Injection feature
        Note: Naming the Fusion Set to correspond to the protection(s) selected is for illustration purposes only (not required).

      3. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Prevent Keystroke Injection feature via Appdome Console, to add the Prevent Keystroke Injection feature to this Fusion Set.

      4. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set, as shown in Figure 1 above, and get the Fusion Set ID from the Fusion Set Detail Summary (as shown below): fusion Set Detail Summary image

        Figure 2: Fusion Set Detail Summary
        Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).

      5. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Cirlce CI or other system:
        1. Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide
        2. Look for sample APIs in Appdome’s GitHub Repository
    2. Building the Prevent Keystroke Injection feature via Appdome Console

      To build the Prevent Keystroke Injection protection by using Appdome Console, follow the instructions below.

      1. Where: Inside the Appdome Console, go to Build > Security Tab > Secure Communication section.
      2. When you select the Prevent Keystroke Injection you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Prevent Keystroke Injection

        Fusion Set applied Prevent Keystroke Injection

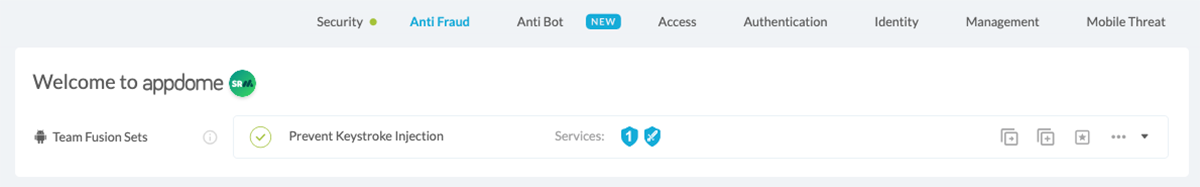

        Figure 4: Fusion Set that displays the newly added Prevent Keystroke Injection protection

      3. Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Prevent Keystroke Injection:
        1. Threat-Events™ OFF > In-App Defense

          If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Prevent Keystroke Injection.

        2. Threat-Events™ ON > In-App Detection

          When this setting is used, Appdome detects the use of key injection and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Prevent Keystroke Injection Intelligence and Control in Mobile Apps.

        3. Threat-Events™ ON > In-App Defense

          When this setting is used, Appdome detects and defends against Keystroke Injection (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Prevent Keystroke Injection Intelligence and Control in Mobile Apps.

      4. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
    Congratulations!  The Prevent Keystroke Injection protection is now added to the mobile app

Using Threat-Events™ for Keystroke Injection Intelligence and Control in Android Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Keystroke Injection is detected. To consume and use Threat-Events™ for Keystroke Injection in Android Apps, use registerReceiver in the Application OnCreate, and the code samples for Threat-Events™ for Keystroke Injection shown below.

The specifications and options for Threat-Events™ for Keystroke Injection are:

Threat-Event™ Elements Prevent Keystroke Injection Method Detail
Appdome Feature Name Prevent Keystroke Injection
Threat-Event Mode
OFF, IN-APP DEFENSE Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check
Visible in ThreatScope™
Developer Parameters for Preventing Keystroke Injection Threat-Event™
Threat-Event NAME KeyInjectionDetected
Threat-Event DATA reasonData
Threat-Event CODE reasonCode
Threat-Event REF 6801
Threat-Event SCORE
currentThreatEventScore Current Threat-Event score
threatEventsScore Total Threat-events score
Threat-Event Context Keys
message Message displayed for the user on event
externalID The external ID of the event which can be listened via Threat Events
osVersion OS version of the current device
deviceModel Current device model
deviceManufacturer The manufacturer of the current device
fusedAppToken The task ID of the Appdome fusion of the currently running app
kernelInfo Info about the kernel: system name, node name, release, version and machine.
carrierPlmn PLMN of the device
deviceID Current device ID
reasonCode Reason code of the occured event
buildDate Appdome fusion date of the current application
devicePlatform OS name of the current device
carrierName Carrier name of the current device
updatedOSVersion Is the OS version up to date
deviceBrand Brand of the device
deviceBoard Board of the device
buildUser Build user
buildHost Build host
sdkVersion Sdk version
timeZone Time zone
deviceFaceDown Is the device face down
locationLong Location longitude conditioned by location permission
locationLat Location latitude conditioned by location permission
locationState Location state conditioned by location permission
wifiSsid Wifi SSID
wifiSsidPermissionStatus Wifi SSID permission status

With Threat-Events™ enabled (turned ON), Android developers can get detailed attack intelligence and granular defense control in Android applications and create amazing user experiences for all mobile end users when Keystroke Injection is detected.

The following is a code sample for native Android apps, which uses all values in the specification above for Prevent Keystroke Injection:


Using Appdome, there are no development or coding prerequisites to build secured Android Apps by using Prevent Keystroke Injection. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Prevent Keystroke Injection

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:
