How to Add Self-Modifying Root Detection in Android Apps
Learn to Detect Self-Modifying Root in Android apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.
What is Self-Modifying Root Detection?
An attacker can create a Self Modifying Root application on rooted devices, which modifies itself during runtime (by changing its name, for example), to hide from other applications or prevent its detection by security products.
How does Appdome Detect Self-modifying Root?
As part of the Root Detection protection, Appdome detects applications running on rooted devices capable of modifying their binary file to avoid detection.
Prerequisites for Using Self-Modifying Root Detection:
To use Appdome’s mobile app security build system to Detect Self-Modifying Root , you’ll need:
- Appdome account (create a free Appdome account here)
- A license for Self-Modifying Root Detection
- Mobile App (.apk or .aab for Android)
- Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)
Detect Self-Modifying Root on Android apps using Appdome
On Appdome, follow these simple steps to create self-defending Android Apps that Detect Self-Modifying Root without an SDK or gateway:
-
Upload the Mobile App to Appdome.
-
Upload an app to Appdome’s Mobile App Security Build System
-
Upload Method: Appdome Console or DEV-API
-
Android Formats: .apk or .aab
-
Self-Modifying Root Detection Compatible With: Java, JS, C++, C#, Kotlin, Flutter, React Native, Unity, Xamarin, Cordova and other Android apps
-
-
Build the feature: Self-Modifying Root Detection.
-
Building Self-Modifying Root Detection by using Appdome’s DEV-API:
-
Create and name the Fusion Set (security template) that will contain the Self-Modifying Root Detection feature as shown below:
-
Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Self-Modifying Root Detection feature via Appdome Console, to add the Self-Modifying Root Detection feature to this Fusion Set.
-
Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set. Copy the Fusion Set ID from the Fusion Set Detail Summary (as shown below):
Figure 2: Fusion Set Detail Summary
Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory). -
Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Circle CI or other system:
-
Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide
-
Look for sample APIs in Appdome’s GitHub Repository
-
Figure 1: Fusion Set that will contain the Self-Modifying Root Detection feature
Note: Naming the Fusion Set to correspond to the protection(s) selected is for illustration purposes only (not required). -
-
Building the Self-Modifying Root Detection feature via Appdome Console
To build the Self-Modifying Root Detection protection by using Appdome Console, follow the instructions below.
-

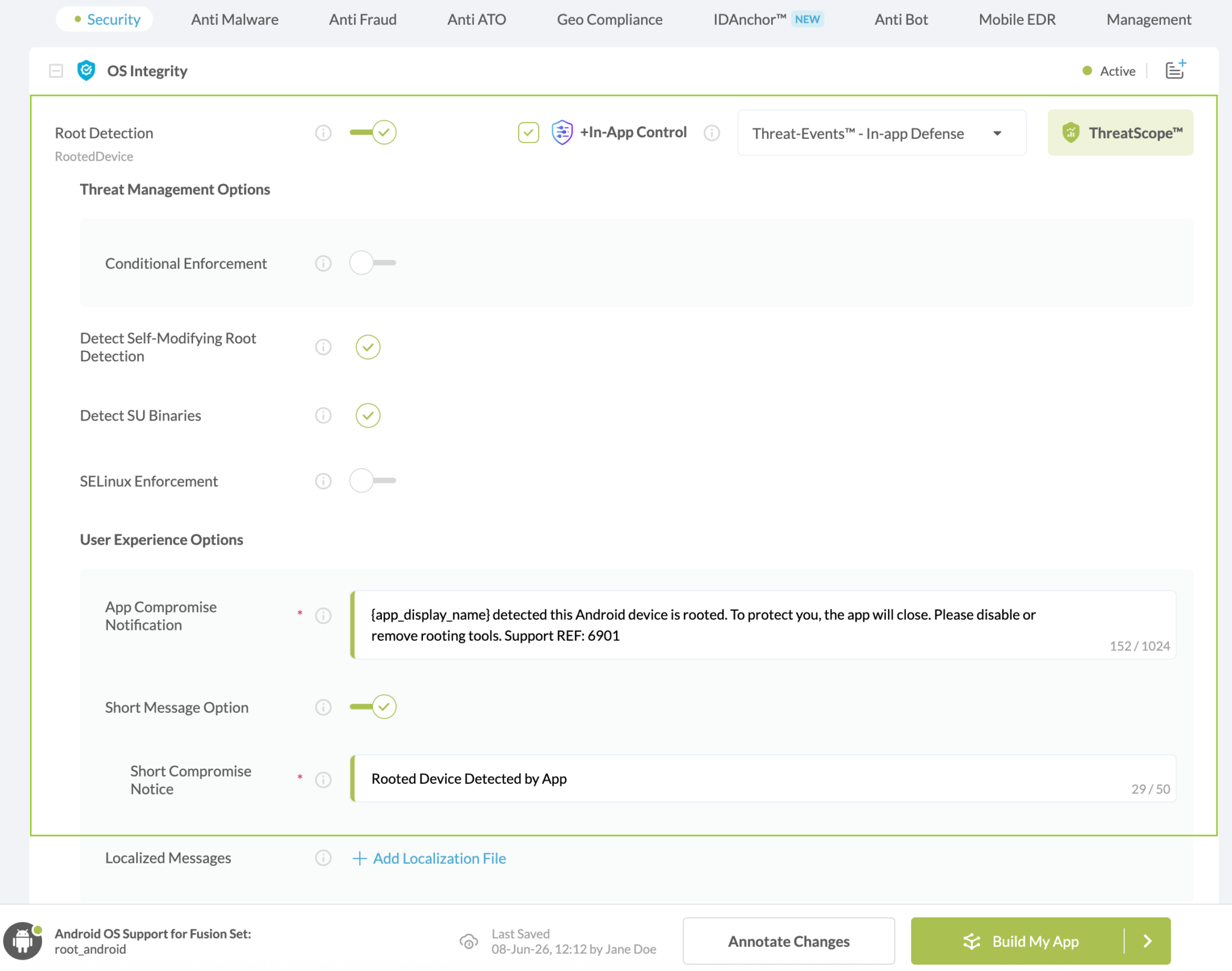

Where: Inside the Appdome Console, go to Build > Security Tab > OS Integrity section.
-
How: Check whether Root Detection is toggled On (enabled), otherwise enable it . The feature Self-Modifying Root Detection is enabled by default, as shown below. Toggle (turn ON) Self-Modifying Root Detection, as shown below.
If needed, Customize the Threat Notification to be displayed to the mobile end-user in a standard OS dialog notification when Appdome Detects Self-Modifying Root.Figure 3: Detect Self-Modifying Root option
Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging. -
When you enable Root Detection you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Self-Modifying Root Detection
Figure 4: Fusion Set that displays the newly added Self-Modifying Root Detection protection
-
Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Self-Modifying Root Detection:
-
Threat-Events™ OFF > In-App Defense
If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Detect Self-Modifying Root.
-
Threat-Events™ ON > In-App Detection
When this setting is used, Appdome detects if the application is capable of modifying its binary at runtime to avoid detection and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Self-Modifying Root Detection Intelligence and Control in Mobile Apps.
-
Threat-Events™ ON > In-App Defense
When this setting is used, Appdome detects and defends against Self-Modifying Root (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Self-Modifying Root Detection Intelligence and Control in Mobile Apps.
-
-
Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
-
Congratulations! The Self-Modifying Root Detection protection is now added to the mobile app -
-
Certify the Self-Modifying Root Detection feature in Android Apps
After building Self-Modifying Root Detection, Appdome generates a Certified Secure™ certificate to guarantee that the Self-Modifying Root Detection protection has been added and is protecting the app. To verify that the Self-Modifying Root Detection protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:
Figure 5: Certified Secure™ certificate
Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Self-Modifying Root Detection has been added to each Android app. Certified Secure provides instant and in-line DevSecOps compliance certification that Self-Modifying Root Detection and other mobile app security features are in each build of the mobile app
Using Threat-Events™ for Self-Modifying Root Intelligence and Control in Android Apps
Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Self-Modifying Root are detected. To consume and use Threat-Events™ for Self-Modifying Root in Android Apps, use registerReceiver in the Application OnCreate, and the code samples for Threat-Events™ for Self-Modifying Root shown below.
The specifications and options for Threat-Events™ for Self-Modifying Root are:
Threat-Event™ Elements | Detect Self-Modifying Root Method Detail |
---|---|
Appdome Feature Name | Self-Modifying Root Detection |
Threat-Event Mode | |
OFF, IN-APP DEFENSE | Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging. |
ON, IN-APP DETECTION | Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce). |
ON, IN-APP DEFENSE | Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection). |
Certified Secure™ Threat Event Check | |
Visible in ThreatScope™ | |
Developer Parameters for Detecting Self-Modifying Root Threat-Event™ | |
Threat-Event NAME | RootedDevice |
Threat-Event DATA | reasonData |
Threat-Event CODE | reasonCode |
Threat-Event REF | 6801 |
Threat-Event SCORE | |
currentThreatEventScore | Current Threat-Event score |
threatEventsScore | Total Threat-events score |
Threat-Event Context Keys | |
---|---|
message | Message displayed for the user on event |
failSafeEnforce | Timed enforcement against the identified threat |
externalID | The external ID of the event which can be listened via Threat Events |
osVersion | OS version of the current device |
deviceModel | Current device model |
deviceManufacturer | The manufacturer of the current device |
fusedAppToken | The task ID of the Appdome fusion of the currently running app |
kernelInfo | Info about the kernel: system name, node name, release, version and machine. |
carrierPlmn | PLMN of the device. Only available for Android devices. |
deviceID | Current device ID |
reasonCode | Reason code of the occurred event |
buildDate | Appdome fusion date of the current application |
devicePlatform | OS name of the current device |
carrierName | Carrier name of the current device. Only available for Android. |
updatedOSVersion | Is the OS version up to date |
deviceBrand | Brand of the device |
deviceBoard | Board of the device |
buildUser | Build user |
buildHost | Build host |
sdkVersion | Sdk version |
timeZone | Time zone |
deviceFaceDown | Is the device face down |
locationLong | Location longitude conditioned by location permission |
locationLat | Location latitude conditioned by location permission |
locationState | Location state conditioned by location permission |
wifiSsid | Wifi SSID |
wifiSsidPermissionStatus | Wifi SSID permission status |
internalError | Internal error code as hex |
extendedMessageText | Internal error code |
rInternalErrorCode | Internal error code |
reason | Reason for the root detection |
With Threat-Events™ enabled (turned ON), Android developers can get detailed attack intelligence and granular defense control in Android applications and create amazing user experiences for all mobile end users when Self-Modifying Root are detected.
The following is a code sample for native Android apps, which uses all values in the specification above for Self-Modifying Root Detection:
x
IntentFilter intentFilter = new IntentFilter();
intentFilter.addAction("RootedDevice");
BroadcastReceiver threatEventReceiver = new BroadcastReceiver() {
public void onReceive(Context context, Intent intent) {
String message = intent.getStringExtra("message"); // Message shown to the user
String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
String variable = intent.getStringExtra("<Context Key>"); // Any other event specific context key
​
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
};
​
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED);
} else {
registerReceiver(threatEventReceiver, intentFilter);
}
x
val intentFilter = IntentFilter()
intentFilter.addAction("RootedDevice")
val threatEventReceiver = object : BroadcastReceiver() {
override fun onReceive(context: Context?, intent: Intent?) {
var message = intent?.getStringExtra("message") // Message shown to the user
var reasonData = intent?.getStringExtra("reasonData") // Threat detection cause
var reasonCode = intent?.getStringExtra("reasonCode") // Event reason code
var currentThreatEventScore = intent?.getStringExtra("currentThreatEventScore") // Current threat event score
var threatEventsScore = intent?.getStringExtra("threatEventsScore") // Total threat events score
var variable = intent?.getStringExtra("<Context Key>") // Any other event specific context key
​
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}
​
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED)
} else {
registerReceiver(threatEventReceiver, intentFilter)
}
const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
function registerToDevEvent(action, callback) {
NativeModules.ADDevEvents.registerForDevEvent(action);
aDDevEvents.addListener(action, callback);
}
export function registerToAllEvents() {
registerToDevEvent(
"RootedDevice",
(userinfo) => Alert.alert(JSON.stringify(userinfo))
var message = userinfo["message"] // Message shown to the user
var reasonData = userinfo["reasonData"] // Threat detection cause
var reasonCode = userinfo["reasonCode"] // Event reason code
var currentThreatEventScore = userinfo["currentThreatEventScore"] // Current threat event score
var threatEventsScore = userinfo["threatEventsScore"] // Total threat events score
var variable = userinfo["<Context Key>"] // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
);
}
RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("RootedDevice"));
class ThreatEventReceiver : BroadcastReceiver
{
public override void OnReceive(Context context, Intent intent)
{
String message = intent.GetStringExtra("message"); // Message shown to the user
String reasonData = intent.GetStringExtra("reasonData"); // Threat detection cause
String reasonCode = intent.GetStringExtra("reasonCode"); // Event reason code
String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore"); // Current threat event score
String threatEventsScore = intent.GetStringExtra("threatEventsScore"); // Total threat events score
String variable = intent.GetStringExtra("<Context Key>"); // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}
NSNotificationCenter.DefaultCenter.AddObserver(
(NSString)"RootedDevice", // Threat-Event Identifier
delegate (NSNotification notification)
{
var message = notification.UserInfo.ObjectForKey("message"); // Message shown to the user
var reasonData = notification.UserInfo.ObjectForKey("reasonData"); // Threat detection cause
var reasonCode = notification.UserInfo.ObjectForKey("reasonCode"); // Event reason code
var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore"); // Current threat event score
var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore"); // Total threat events score
var variable = notification.UserInfo.ObjectForKey("<Context Keys>"); // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
window.broadcaster.addEventListener("RootedDevice", function(userInfo) {
var message = userInfo.message // Message shown to the user
var reasonData = userInfo.reasonData // Threat detection cause
var reasonCode = userInfo.reasonCode // Event reason code
var currentThreatEventScore = userInfo.currentThreatEventScore // Current threat event score
var threatEventsScore = userInfo.threatEventsScore // Total threat events score
var variable = userInfo.<Context Key> // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
xxxxxxxxxx
import 'dart:async';
​
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
​
class PlatformChannel extends StatefulWidget {
const PlatformChannel({super.key});
​
State<PlatformChannel> createState() => _PlatformChannelState();
}
​
class _PlatformChannelState extends State<PlatformChannel> {
static const String _eventChannelName = 'RootedDevice'; // Replace with your EventChannel name
static const EventChannel _eventChannel = EventChannel(_eventChannelName);
​
void initState() {
super.initState();
_eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
}
​
void _onEvent(Object? event) {
setState(() {
// Adapt this section based on your specific event data structure
var eventData = event as Map;
​
// Example: Accessing 'externalID' field from the event
var externalID = eventData['externalID'];
​
// Customize the rest of the fields based on your event structure
String message = eventData['message']; // Message shown to the user
String reasonData = eventData['reasonData']; // Threat detection cause
String reasonCode = eventData['reasonCode']; // Event reason code
String currentThreatEventScore = eventData['currentThreatEventScore']; // Current threat event score
String threatEventsScore = eventData['threatEventsScore']; // Total threat events score
​
// Any other event specific context key
String variable = eventData['<Context Key>'];
});
}
​
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
Using Appdome, there are no development or coding prerequisites to build secured Android Apps by using Self-Modifying Root Detection. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.
Releasing and Publishing Mobile Apps with Self-Modifying Root Detection
After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:
- Customizing, Configuring & Branding Secure Mobile Apps
- Deploying/Publishing Secure mobile apps to Public or Private app stores
- Releasing Secured Android & iOS Apps built on Appdome.
Related Articles:
- How to Build Root Detection, Protect Android Apps
- How to Protect iOS Apps from Liberty Lite Jailbreak Detection Bypass
- How to Protect iOS Apps from FlyJB Jailbreak Detection Bypass
How Do I Learn More?
If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.
Thank you!
Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.
