How to Detect Zygisk and Root Hiding in Android Apps

Last updated April 23, 2023 by Appdome

Learn to Detect Zygisk in Android apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

What is Zygisk?

Zygisk is a feature of Magisk that allows advanced module developers to execute code directly in any Android app’s processes before the processes run. In doing so, Zygisk is able to gain root access without sending root data, as it starts first after the system and before the app. This capability makes Zygisk much more powerful than Magisk Hide in terms of hiding the fact that their device is rooted from the end user. As a result, unsuspecting users will run security-related applications, such as banking services, on the manipulated device.

Why Should Developers Block Zygisk?

Zygisk is an extremely powerful and damaging addition to Magisk. By using Zygisk, malicious actors are able to execute code directly in the processes of any Android app before those processes are specialized and executed. Zygisk also allows such actors to have much better, harder to detect root capabilities to hide the operation of Magisk (root cloaking).

Detect Zygisk on Android apps using Appdome

On Appdome, follow these 3 simple steps to create self-defending Android Apps that Detect Zygisk without an SDK or gateway:

Upload the Mobile App to Appdome.
1. Upload an app to Appdome’s Mobile App Security Build System
2. Upload Method: Appdome Console or DEV-API
3. Android Formats: .apk or .aab
4. Block Magisk Compatible With: Java, JS, C++, C#, Kotlin, Flutter, React Native, Unity, Xamarin, Cordova and more
Build the feature: Block Magisk.
1. Building Block Magisk by using Appdome’s DEV-API:
  1. Create and name the Fusion Set (security template) that will contain the Block Magisk feature as shown below:
  2. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Block Magisk feature via Appdome Console, to add the Block Magisk feature to this Fusion Set.
  3. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set, as shown in Figure 1 above, and get the Fusion Set ID from the Fusion Set Detail Summary (as shown below):

    Figure 2: Fusion Set Detail Summary
    Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).
  4. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Cirlce CI or other system:

    Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide

    Look for sample APIs in Appdome’s GitHub Repository
2. Building the Block Magisk feature via Appdome Console

  To build the Block Magisk protection by using Appdome Console, follow the instructions below.
  1. Where: Inside the Appdome Console, go to Build > Anti Fraud Tab > Mobile Malware Prevention section
  2. How: Toggle (turn ON) Block Magisk, as shown below.
    If needed, Customize the Threat Notification to be displayed to the mobile end-user in a standard OS dialog notification when Appdome Detects Zygisk.

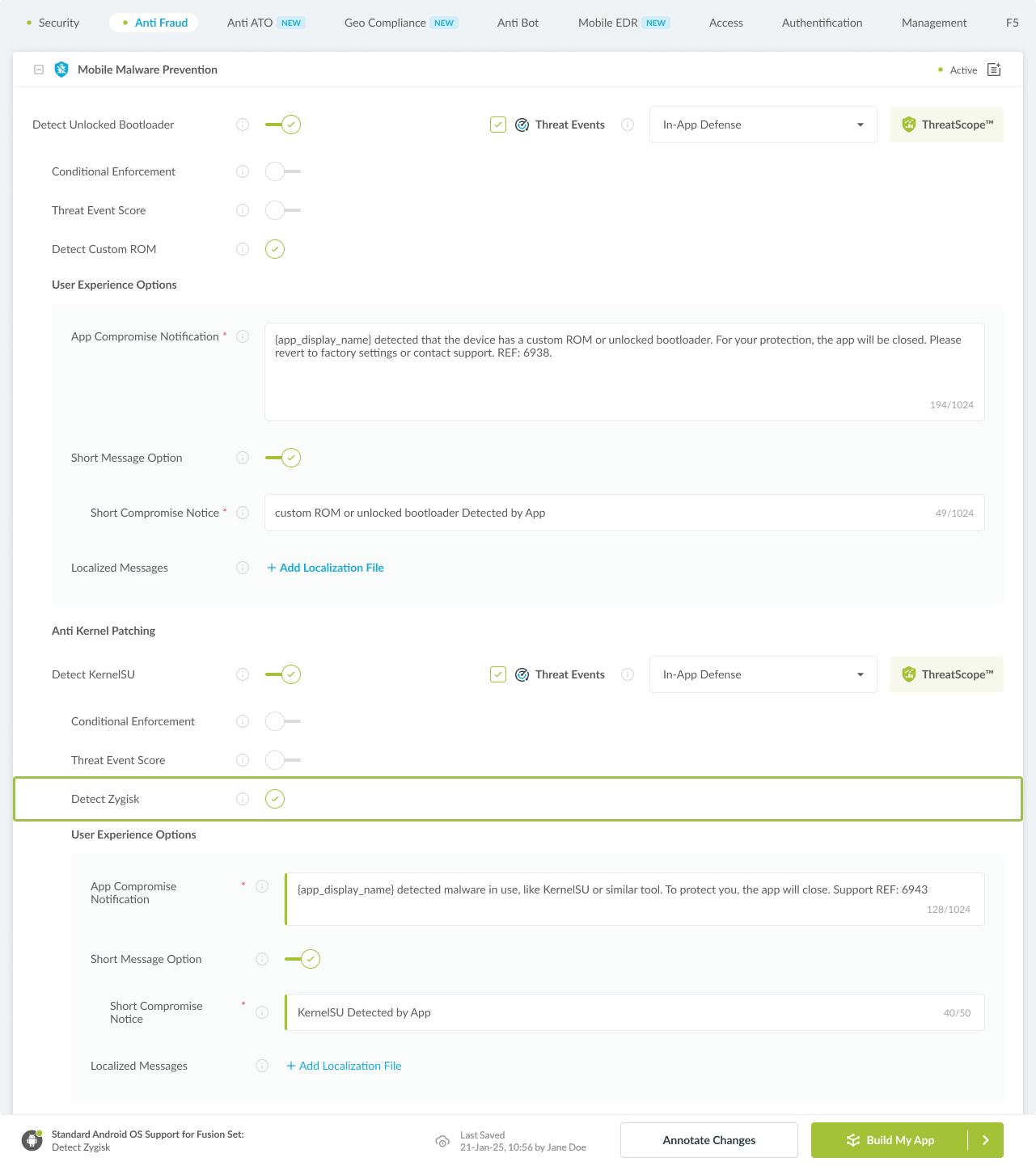

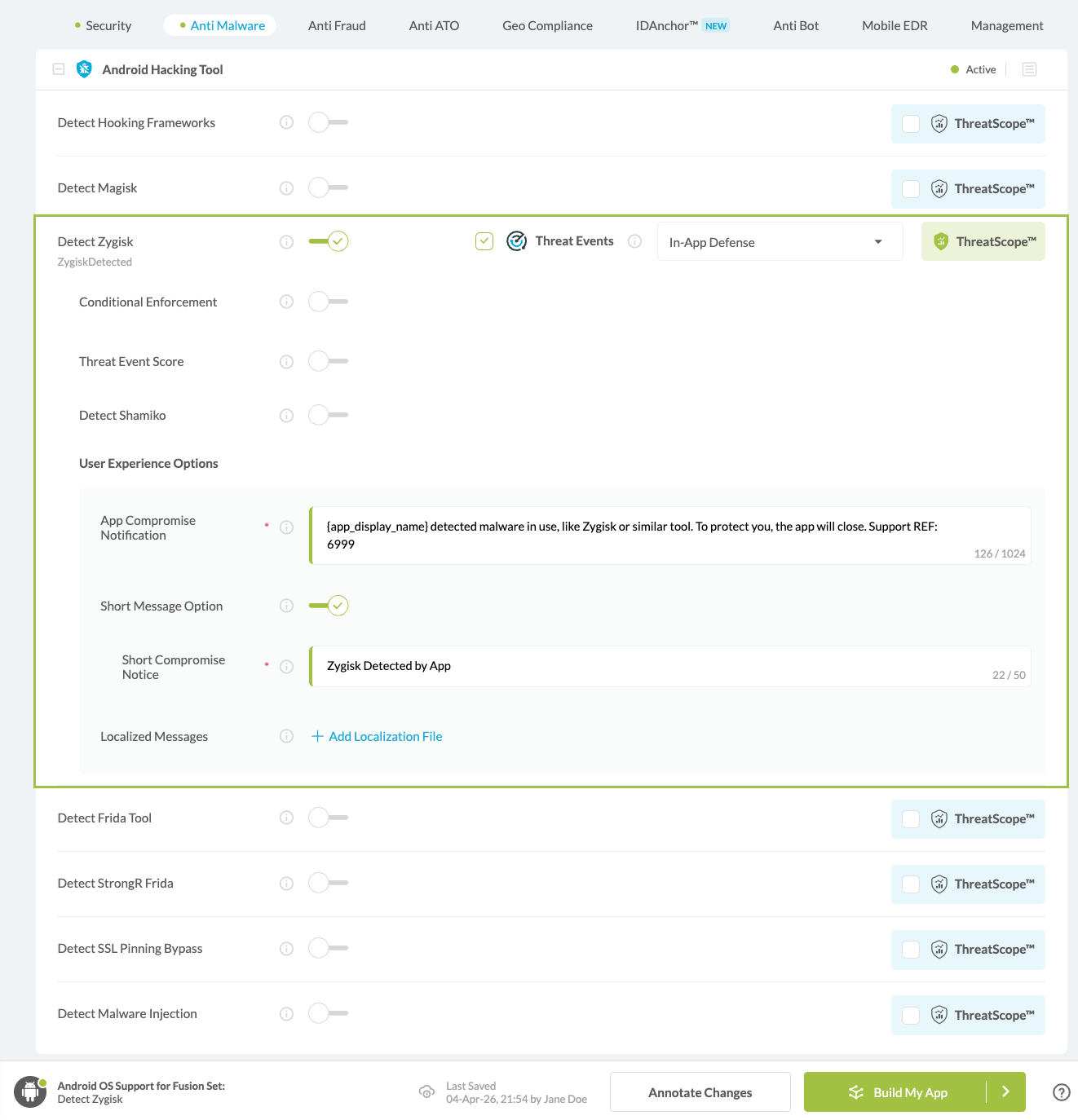

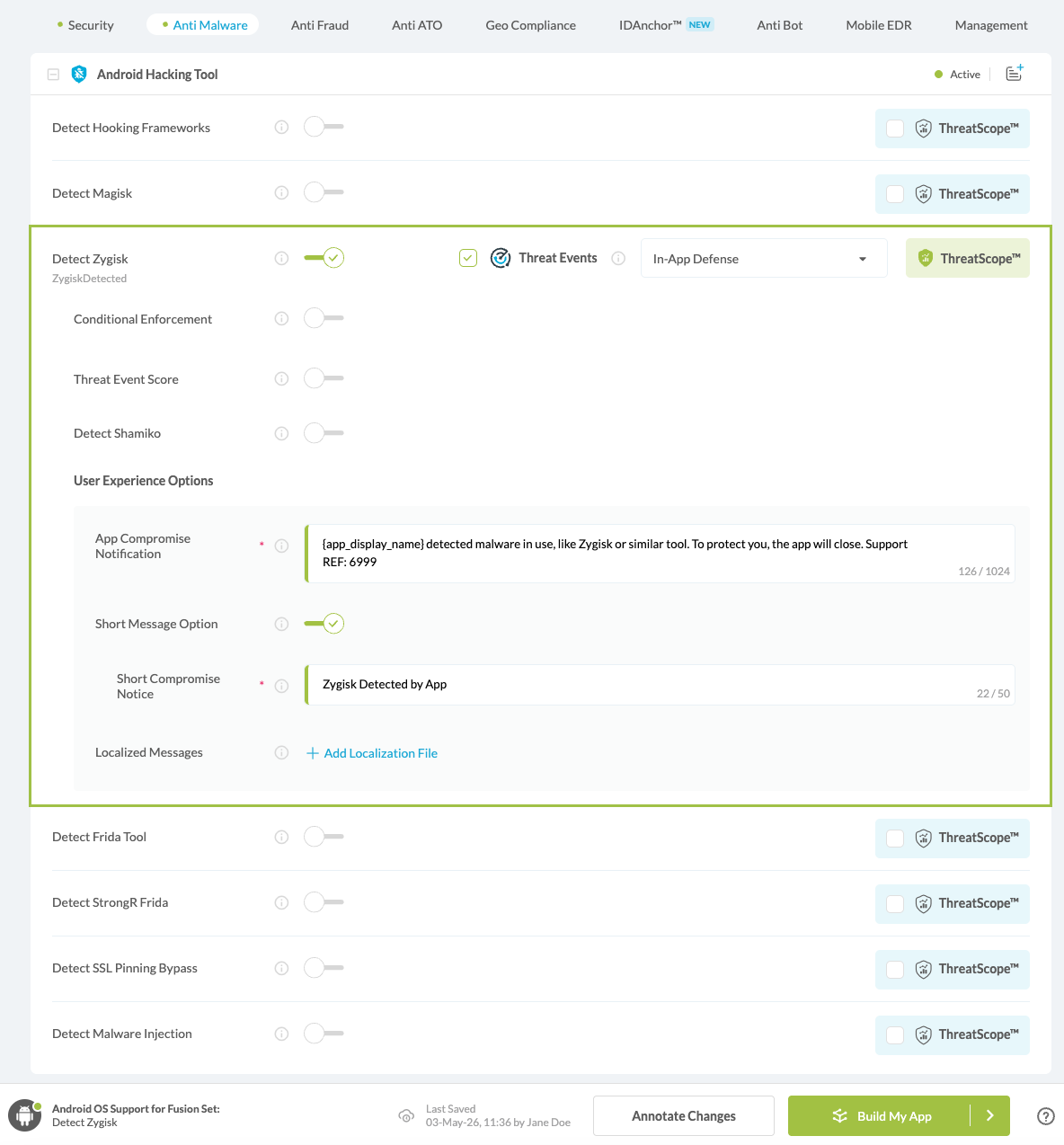

    Figure 3: Detect Zygisk option
    Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
  3. When you select the Block Magisk you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Block Magisk

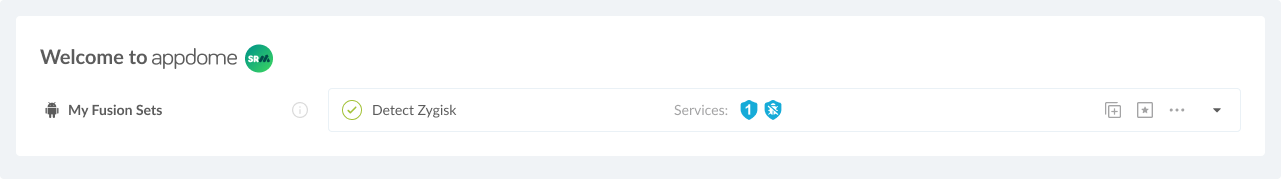

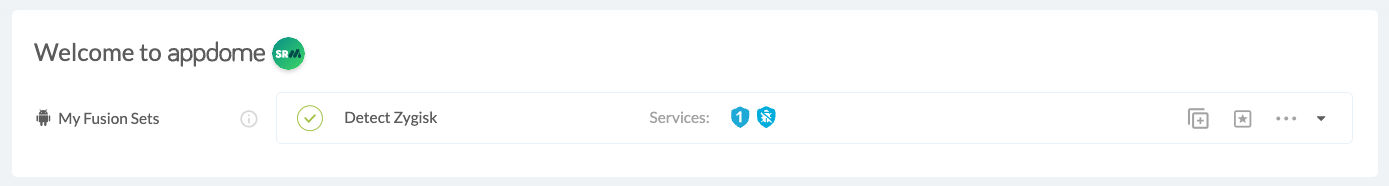

    Figure 4: Fusion Set that displays the newly added Block Magisk protection
  4. Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Block Magisk:

    Threat-Events™ OFF > In-App Defense
    If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Detect Zygisk.

    Threat-Events™ ON > In-App Detection
    When this setting is used, Appdome detects Block Magisk and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Block Magisk Intelligence and Control in Mobile Apps.

    Threat-Events™ ON > In-App Defense
    When this setting is used, Appdome detects and defends against Zygisk (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Block Magisk Intelligence and Control in Mobile Apps.
  5. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
Congratulations! The Block Magisk protection is now added to the mobile app
Certify the Block Magisk feature in Android Apps.

After building Block Magisk, Appdome generates a Certified Secure™ certificate to guarantee that the Block Magisk protection has been added and is protecting the app. To verify that the Block Magisk protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

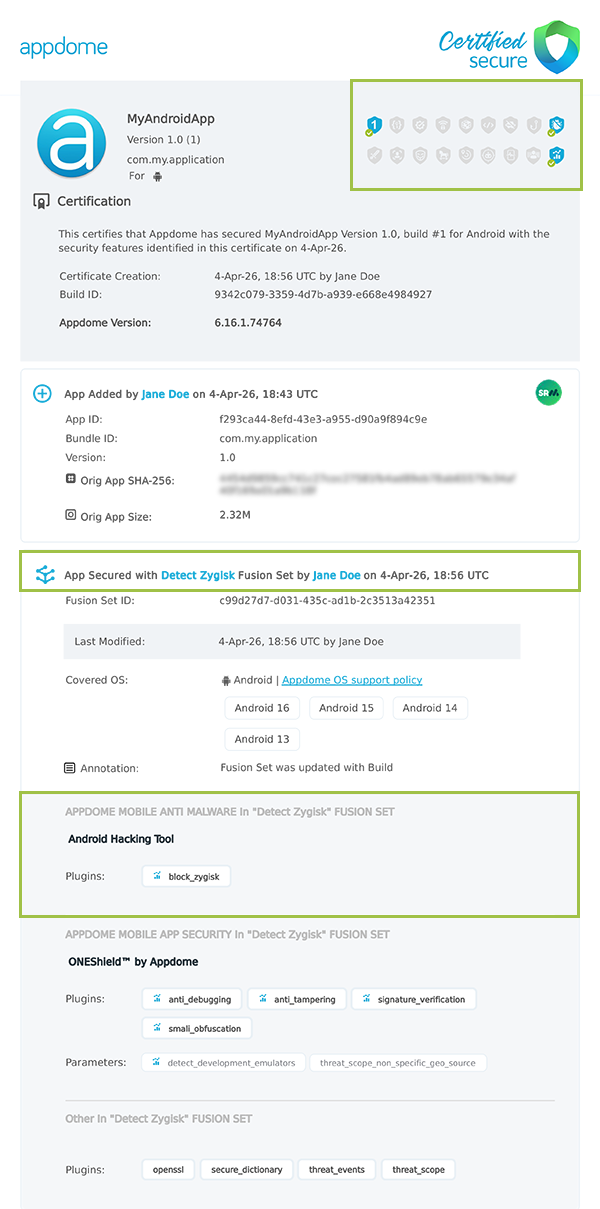

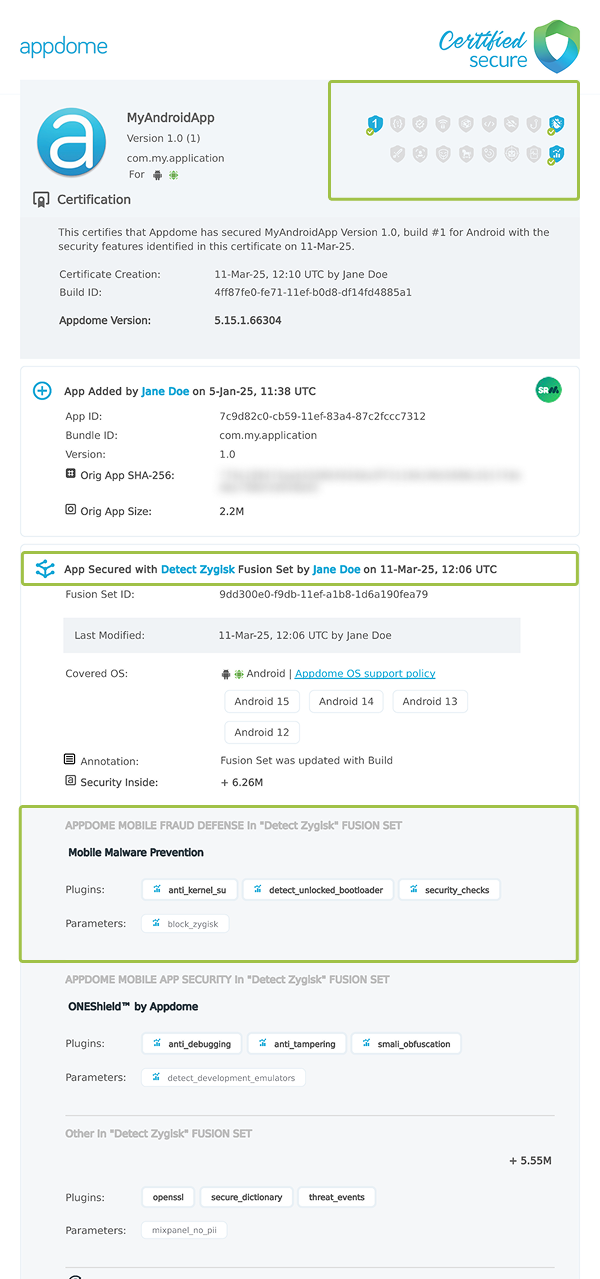

Figure 5: Certified Secure™ certificate

Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Block Magisk has been added to each Android app. Certified Secure provides instant and in-line DevSecOps compliance certification that Block Magisk and other mobile app security features are in each build of the mobile app

Using Threat-Events™ for Zygisk Intelligence and Control in Android Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Zygisk is detected. To consume and use Threat-Events™ for Zygisk in Android Apps, use registerReceiver in the Application OnCreate, and the code samples for Threat-Events™ for Zygisk shown below.

The specifications and options for Threat-Events™ for Zygisk are:

Threat-Event™ Elements	Detect Zygisk Method Detail
Appdome Feature Name	Block Magisk
Threat-Event Mode
OFF, IN-APP DEFENSE	Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION	Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE	Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check
Visible in ThreatScope™
Developer Parameters for Detecting Zygisk Threat-Event™
Threat-Event NAME	MagiskManagerDetected
Threat-Event DATA	reasonData
Threat-Event CODE	reasonCode
Threat-Event REF	6908
Threat-Event SCORE
currentThreatEventScore	Current Threat-Event score
threatEventsScore	Total Threat-events score

Threat-Event Context Keys
message	Message displayed for the user on event
externalID	The external ID of the event which can be listened via Threat Events
osVersion	OS version of the current device
deviceModel	Current device model
deviceManufacturer	The manufacturer of the current device
fusedAppToken	The task ID of the Appdome fusion of the currently running app
kernelInfo	Info about the kernel: system name, node name, release, version and machine.
carrierPlmn	PLMN of the device
deviceID	Current device ID
reasonCode	Reason code of the occured event
buildDate	Appdome fusion date of the current application
devicePlatform	OS name of the current device
carrierName	Carrier name of the current device
updatedOSVersion	Is the OS version up to date
deviceBrand	Brand of the device
deviceBoard	Board of the device
buildUser	Build user
buildHost	Build host
sdkVersion	Sdk version
timeZone	Time zone
deviceFaceDown	Is the device face down
locationLong	Location long
locationLat	Location lat
locationState	Location state
wifiSsid	Wifi SSID
wifiSsidPermissionStatus	Wifi SSID permission status
internalError	Internal error code as hex
extendedMessageText	Internal error code
rInternalErrorCode	Internal error code
data	The artifcat used to detect the presence of Magisk Manager on the device
detectedAppPath	When applicable this will hold the app identifier that triggered the detection

With Threat-Events™ enabled (turned ON), Android developers can get detailed attack intelligence and granular defense control in Android applications and create amazing user experiences for all mobile end users when Zygisk is detected.

The following is a code sample for native Android apps, which uses all values in the specification above for Block Magisk:

                    IntentFilter intentFilter = new IntentFilter();
                    intentFilter.addAction("MagiskManagerDetected");
                    BroadcastReceiver threatEventReceiver = new BroadcastReceiver() {
                        @Override
                        public void onReceive(Context context, Intent intent) {
                            String message = intent.getStringExtra("message"); // Message shown to the user
                            String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
                            String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
                            String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
                            String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
                            String variable = intent.getStringExtra(""); // Any other event specific context key

                            // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                        }
                    };

                    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
                        registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED);
                    } else {
                        registerReceiver(threatEventReceiver, intentFilter);
                    }

Java
x

IntentFilter intentFilter = new IntentFilter();
intentFilter.addAction("MagiskManagerDetected");
BroadcastReceiver threatEventReceiver = new BroadcastReceiver() {
    @Override
    public void onReceive(Context context, Intent intent) {
        String message = intent.getStringExtra("message"); // Message shown to the user
        String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
        String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
        String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
        String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
        String variable = intent.getStringExtra("<Context Key>"); // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
};
​
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
    registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED);
} else {
    registerReceiver(threatEventReceiver, intentFilter);
}

                    val intentFilter = IntentFilter()
                    intentFilter.addAction("MagiskManagerDetected")
                    val threatEventReceiver = object : BroadcastReceiver() {
                        override fun onReceive(context: Context?, intent: Intent?) {
                            var message = intent?.getStringExtra("message") // Message shown to the user
                            var reasonData = intent?.getStringExtra("reasonData") // Threat detection cause
                            var reasonCode = intent?.getStringExtra("reasonCode") // Event reason code
                            var currentThreatEventScore = intent?.getStringExtra("currentThreatEventScore") // Current threat event score
                            var threatEventsScore = intent?.getStringExtra("threatEventsScore") // Total threat events score
                            var variable = intent?.getStringExtra("") // Any other event specific context key

                            // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                        }
                    }

                    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
                        registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED)
                    } else {
                        registerReceiver(threatEventReceiver, intentFilter)
                    }


                        Kotlin

x

val intentFilter = IntentFilter()
intentFilter.addAction("MagiskManagerDetected")
val threatEventReceiver = object : BroadcastReceiver() {
    override fun onReceive(context: Context?, intent: Intent?) {
        var message = intent?.getStringExtra("message") // Message shown to the user
        var reasonData = intent?.getStringExtra("reasonData") // Threat detection cause
        var reasonCode = intent?.getStringExtra("reasonCode") // Event reason code
        var currentThreatEventScore = intent?.getStringExtra("currentThreatEventScore") // Current threat event score
        var threatEventsScore = intent?.getStringExtra("threatEventsScore") // Total threat events score
        var variable = intent?.getStringExtra("<Context Key>") // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    }
}
​
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.TIRAMISU) {
    registerReceiver(threatEventReceiver, intentFilter, Context.RECEIVER_NOT_EXPORTED)
} else {
    registerReceiver(threatEventReceiver, intentFilter)
}

const { ADDevEvents } = NativeModules;
                const aDDevEvents = new NativeEventEmitter(ADDevEvents);

                function registerToDevEvent(action, callback) {
                    NativeModules.ADDevEvents.registerForDevEvent(action);
                    aDDevEvents.addListener(action, callback);
                }

                export function registerToAllEvents() {
                    registerToDevEvent(
                        "MagiskManagerDetected",
                        (userinfo) => Alert.alert(JSON.stringify(userinfo))

                        var message = userinfo["message"] // Message shown to the user
                        var reasonData = userinfo["reasonData"] // Threat detection cause
                        var reasonCode = userinfo["reasonCode"] // Event reason code
                        var currentThreatEventScore = userinfo["currentThreatEventScore"] // Current threat event score
                        var threatEventsScore = userinfo["threatEventsScore"] // Total threat events score
                        var variable = userinfo["<Context Key>"] // Any other event specific context key

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    );
                }


                    React Native

​x

const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
​
function registerToDevEvent(action, callback) {
    NativeModules.ADDevEvents.registerForDevEvent(action);
    aDDevEvents.addListener(action, callback);
}
​
export function registerToAllEvents() {
    registerToDevEvent(
        "MagiskManagerDetected",
        (userinfo) => Alert.alert(JSON.stringify(userinfo))
​
        var message = userinfo["message"] // Message shown to the user
        var reasonData = userinfo["reasonData"] // Threat detection cause
        var reasonCode = userinfo["reasonCode"] // Event reason code
        var currentThreatEventScore = userinfo["currentThreatEventScore"] // Current threat event score
        var threatEventsScore = userinfo["threatEventsScore"] // Total threat events score
        var variable = userinfo["<Context Key>"] // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    );
}
​

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("MagiskManagerDetected"));
                class ThreatEventReceiver : BroadcastReceiver
                {
                public override void OnReceive(Context context, Intent intent)
                {
                    String message = intent.getStringExtra("message"); // Message shown to the user
                    String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
                    String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
                    String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
                    String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
                    String variable = intent.getStringExtra("<Context Key>"); // Any other event specific context key

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }
                }


                    Xamarin/MAUI Android

​x

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("MagiskManagerDetected"));
​
class ThreatEventReceiver : BroadcastReceiver
{
  public override void OnReceive(Context context, Intent intent)
  {
    String message = intent.getStringExtra("message"); // Message shown to the user
    String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
    String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
    String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
    String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
    String variable = intent.getStringExtra("<Context Key>"); // Any other event specific context key
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
  }
}

                NSNotificationCenter.DefaultCenter.AddObserver(
                    (NSString)"JailbrokenDevice", // Threat-Event Identifier
                    delegate (NSNotification notification)
                    {
                        var message = notification.UserInfo.ObjectForKey("message"); // Message shown to the user
                        var reasonData = notification.UserInfo.ObjectForKey("reasonData"); // Threat detection cause
                        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode"); // Event reason code
                        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore"); // Current threat event score
                        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore"); // Total threat events score
                        var variable = notification.UserInfo.ObjectForKey(""); // Any other event specific context key
                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    });


                    Xamarin/MAUI iOS


NSNotificationCenter.DefaultCenter.AddObserver(
  (NSString)"MagiskManagerDetected", // Threat-Event Identifier
  delegate (NSNotification notification)
  {
    var message = notification.UserInfo.ObjectForKey("message"); // Message shown to the user
    var reasonData = notification.UserInfo.ObjectForKey("reasonData"); // Threat detection cause
    var reasonCode = notification.UserInfo.ObjectForKey("reasonCode"); // Event reason code
    var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore"); // Current threat event score
    var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore"); // Total threat events score
    var variable = notification.UserInfo.ObjectForKey("<Context Keys>"); // Any other event specific context key
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
  });

window.broadcaster.addEventListener("MagiskManagerDetected", function(userInfo) {
        var message = userInfo.message // Message shown to the user
        var reasonData = userInfo.reasonData // Threat detection cause
        var reasonCode = userInfo.reasonCode // Event reason code
        var currentThreatEventScore = userInfo.currentThreatEventScore // Current threat event score
        var threatEventsScore = userInfo.threatEventsScore // Total threat events score
        var variable = userInfo.<Context Key> // Any other event specific context key

        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
            });


                    Cordova

​x

window.broadcaster.addEventListener("MagiskManagerDetected", function(userInfo) {
        var message = userInfo.message // Message shown to the user
        var reasonData = userInfo.reasonData // Threat detection cause
        var reasonCode = userInfo.reasonCode // Event reason code
        var currentThreatEventScore = userInfo.currentThreatEventScore // Current threat event score
        var threatEventsScore = userInfo.threatEventsScore // Total threat events score
        var variable = userInfo.<Context Key> // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});

Prerequisites to Using Block Magisk:

To use Appdome’s mobile app security build system to Detect Zygisk , you’ll need:

Appdome account (create a free Appdome account here)
A license for Block Magisk
Mobile App (.apk or .aab For Android)
Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)

Using Appdome, there are no development or coding prerequisites to build secured Android Apps by using Block Magisk. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Block Magisk

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:

Customizing, Configuring & Branding Secure Mobile Apps
Deploying/Publishing Secure mobile apps to Public or Private app stores
Releasing Secured Android & iOS Apps built on Appdome.

All apps protected by Appdome are fully compatible with any public app store, including Apple App Store, Google Play, Huawei App Gallery and more.

If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.

Thank you!

Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.

How to Detect Zygisk and Root Hiding in Android Apps

What is Zygisk?

Why Should Developers Block Zygisk?

Detect Zygisk on Android apps using Appdome

Upload the Mobile App to Appdome.

Upload an app to Appdome’s Mobile App Security Build System

Build the feature: Block Magisk.

Building Block Magisk by using Appdome’s DEV-API:

Building the Block Magisk feature via Appdome Console

Certify the Block Magisk feature in Android Apps.

Using Threat-Events™ for Zygisk Intelligence and Control in Android Apps

Prerequisites to Using Block Magisk:

Related Articles:

Thank you!
