How to Enforce SSL TLS Cipher Suites in Android & iOS Apps
Learn to Enforce TLS Cipher Suites in Mobile apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.
What are Outdated TLS Cipher-Suites?
The TLS/SSL protocol has been around for a very long time, and it supports a wide range of cryptographic algorithms for establishing a secure communication channel and communicating over it.
The protocol still supports some cryptographic algorithms that are now considered outdated, and it is not uncommon for some servers to have outdated configurations.
Why Enforce SSL TLS Cipher Suites in Mobile Apps?
Note:
The procedure described in this Knowledge Base article should only be implemented in domains located on your networks, which are under your control. Any use outside such domains is strongly inadvisable, due to the very high likelihood of MiTM violation in such cases.
The reason these algorithms were deemed inadequate is twofold:
• Some algorithms were proven to have weaknesses.
• With the increase in available computing power, some algorithms have become susceptible to brute-force attacks.
In addition, it is not uncommon for attackers to intentionally impersonate servers or weaken their parameters in order to make secure channels not-so-secure anymore.
For these reasons, many organizations seek to enforce a limitation on allowed cipher suites used in their software.
Note:
While the images in this article display the feature in Android apps, the instructions are identical for Android and iOS-based devices.
Enforcing TLS Cipher Suites on Mobile apps by Using Appdome
On Appdome, follow these 3 simple steps to create self-defending Mobile Apps that Enforce TLS Cipher Suites without an SDK or gateway:
-
Upload the Mobile App to Appdome.
-
Upload an app to Appdome’s Mobile App Security Build System
-
Upload Method: Appdome Console or DEV-API
-
Mobile App Formats: .ipa For iOS device or .apk or .aab
-
-
Build the feature: Enforce Cipher Suites.
-
Building Enforce Cipher Suites by using Appdome’s DEV-API:
-
Create and name the Fusion Set (security template) that will contain the Enforce Cipher Suites feature as shown below:
-
Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Enforce Cipher Suites feature via Appdome Console, to add the Enforce Cipher Suites feature to this Fusion Set.
-
Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set, as shown in Figure 1 above, and get the Fusion Set ID from the Fusion Set Detail Summary (as shown below):
Figure 2: Fusion Set Detail Summary
Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory). -
Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Cirlce CI or other system:
-
Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide
-
Look for sample APIs in Appdome’s GitHub Repository
-

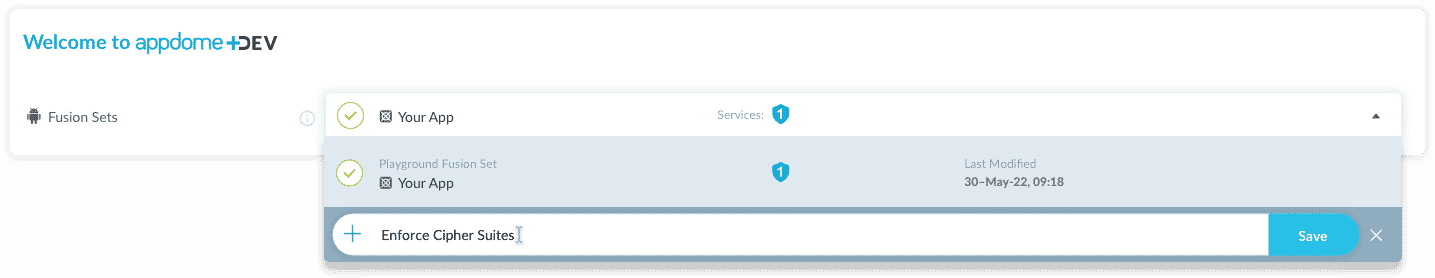

Figure 1: Fusion Set that will contain the Enforce Cipher Suites feature
Note: Naming the Fusion Set to correspond to the protection(s) selected is for illustration purposes only (not required). -
-
Building the Enforce Cipher Suites feature via Appdome Console
To build the Enforce Cipher Suites protection by using Appdome Console, follow the instructions below.
-
Where: Inside the Appdome Console, go to Build > Security Tab > Secure Communication section
-

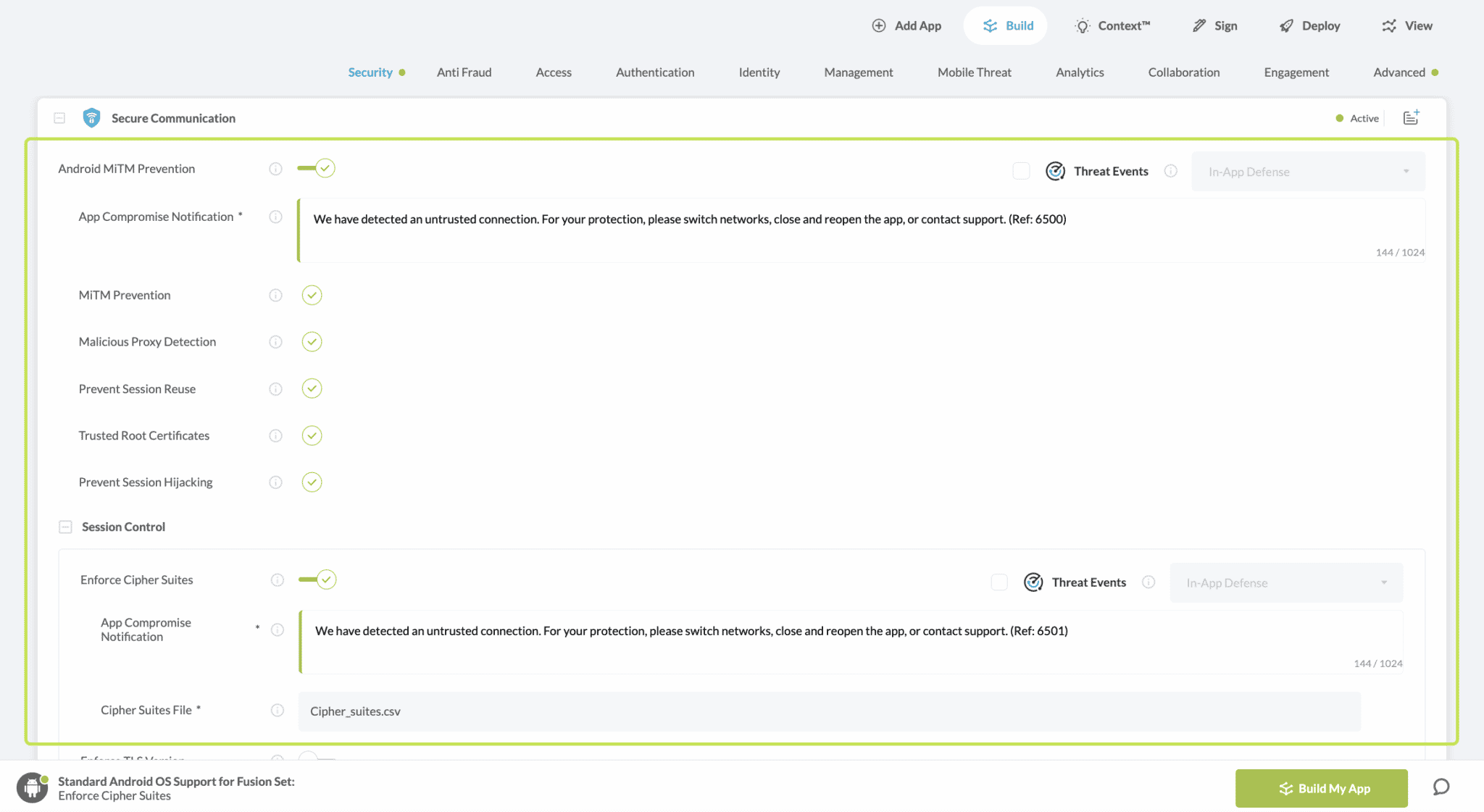

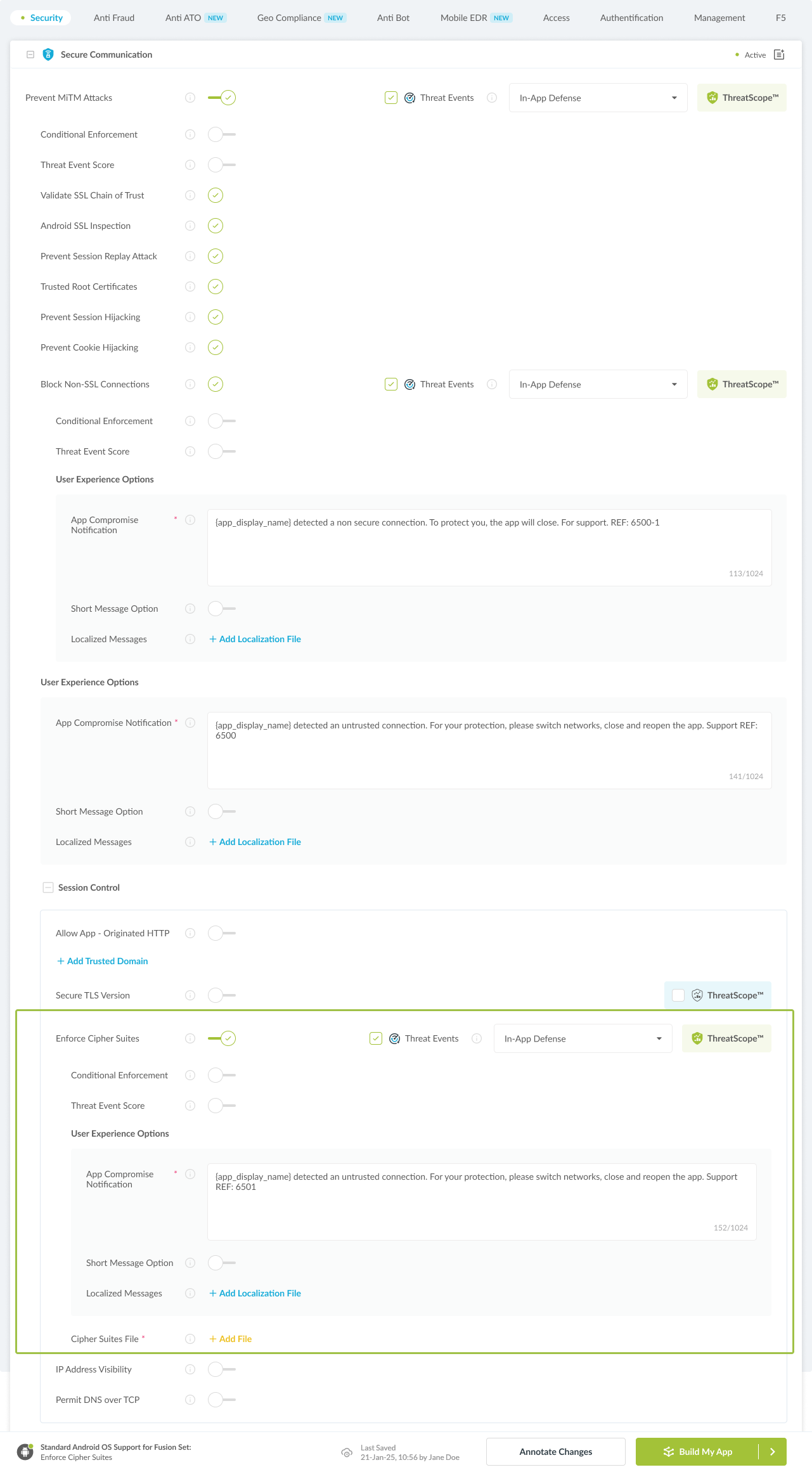

How: Toggle (turn ON) Enforce Cipher Suites, as shown below.
If needed, Customize the Threat Notification to be displayed to the mobile end-user in a standard OS dialog notification when Appdome Enforces TLS Cipher Suites.Figure 3: Enforce TLS Cipher Suites option
Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging. -

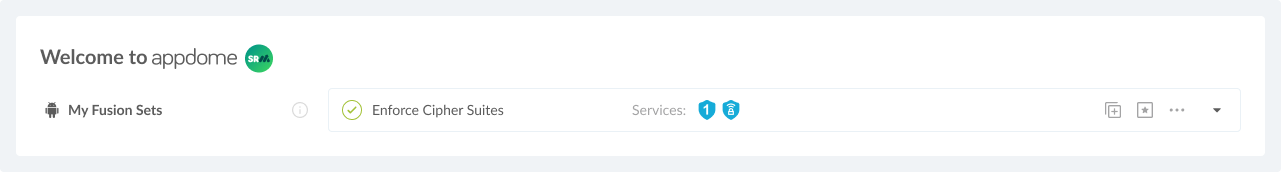

When you select the Enforce Cipher Suites you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Enforce Cipher Suites
Figure 4: Fusion Set that displays the newly added Enforce Cipher Suites protection
-
Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Enforce Cipher Suites:
-
Threat-Events™ OFF > In-App Defense
If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Enforce TLS Cipher Suites.
-
Threat-Events™ ON > In-App Detection
When this setting is used, Appdome detects the use of non-approved cipher suites and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Enforce Cipher Suites Intelligence and Control in Mobile Apps.
-
Threat-Events™ ON > In-App Defense
When this setting is used, Appdome detects and defends against TLS Cipher Suites (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Enforce Cipher Suites Intelligence and Control in Mobile Apps.
-
- Optional Configuration with Enforce Cipher Suites:
- Cipher Suites File
Allows providing a text file Provide a text file with the enforced cipher suites.
-
Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
-
Congratulations! The Enforce Cipher Suites protection is now added to the mobile app -
-
Certify the Enforce Cipher Suites feature in Mobile Apps.
After building Enforce Cipher Suites, Appdome generates a Certified Secure™ certificate to guarantee that the Enforce Cipher Suites protection has been added and is protecting the app. To verify that the Enforce Cipher Suites protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

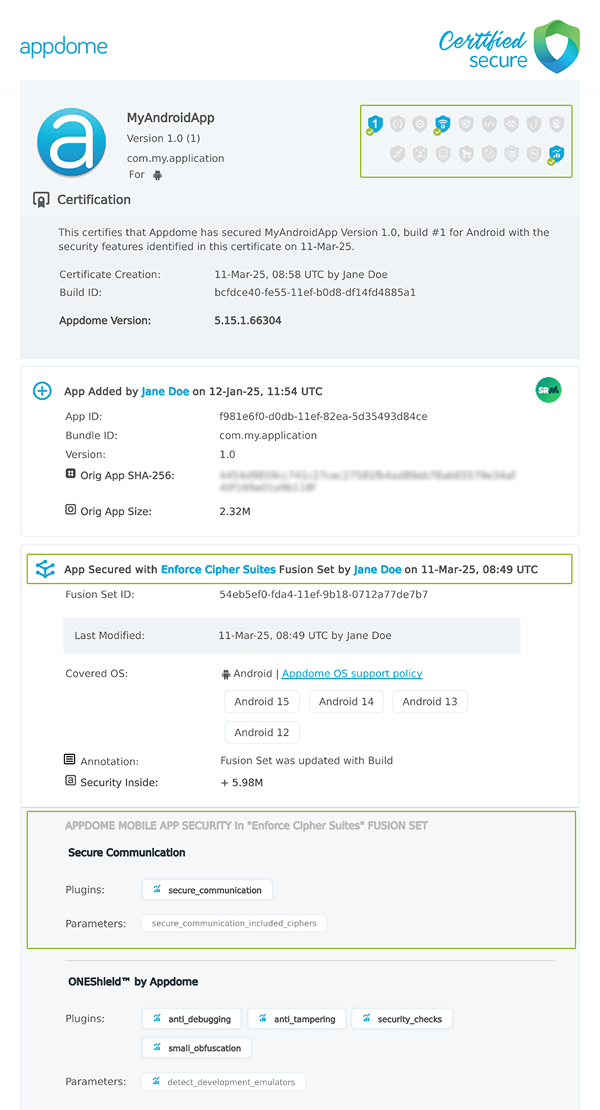

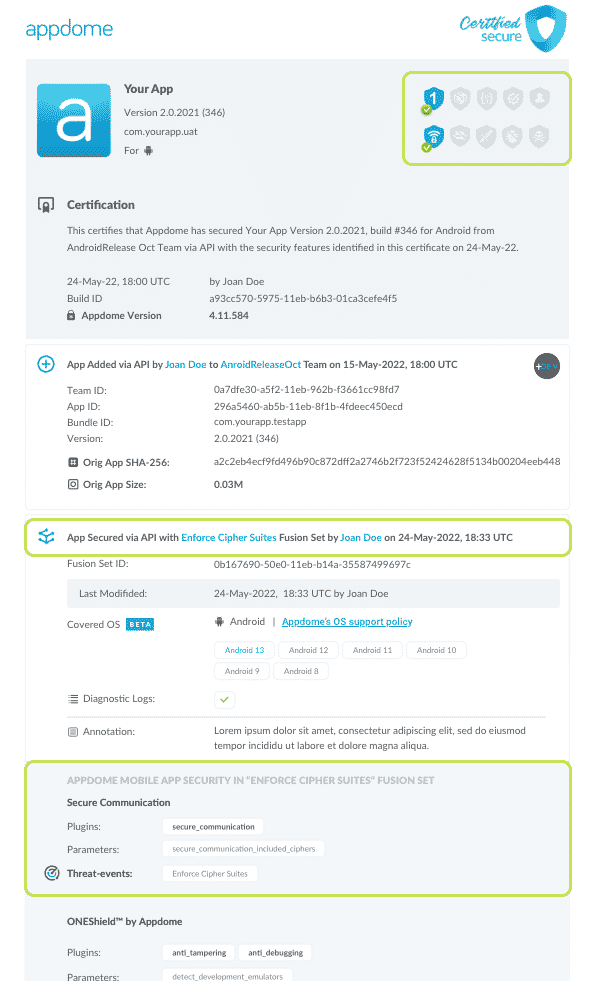

Figure 5: Certified Secure™ certificate
Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Enforce Cipher Suites has been added to each Mobile app. Certified Secure provides instant and in-line DevSecOps compliance certification that Enforce Cipher Suites and other mobile app security features are in each build of the mobile app
Using Threat-Events™ for TLS Cipher Suites Intelligence and Control in Mobile Apps
Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when TLS Cipher Suites are detected. To consume and use Threat-Events™ for TLS Cipher Suites in Mobile Apps, use AddObserverForName in Notification Center, and the code samples for Threat-Events™ for TLS Cipher Suites shown below.
The specifications and options for Threat-Events™ for TLS Cipher Suites are:
Threat-Event™ Elements | Enforce TLS Cipher Suites Method Detail |
---|---|
Appdome Feature Name | Enforce Cipher Suites |
Threat-Event Mode | |
OFF, IN-APP DEFENSE | Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging. |
ON, IN-APP DETECTION | Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce). |
ON, IN-APP DEFENSE | Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection). |
Certified Secure™ Threat Event Check | |
Visible in ThreatScope™ | |
Developer Parameters for Enforcing TLS Cipher Suites Threat-Event™ | |
Threat-Event NAME | SslIncompatibleCipher |
Threat-Event DATA | reasonData |
Threat-Event CODE | reasonCode |
Threat-Event REF | 6801 |
Threat-Event SCORE | |
currentThreatEventScore | Current Threat-Event score |
threatEventsScore | Total Threat-events score |
Threat-Event Context Keys | |
message | Message displayed for the user on event |
externalID | The external ID of the event which can be listened via Threat Events |
osVersion | OS version of the current device |
deviceModel | Current device model |
deviceManufacturer | The manufacturer of the current device |
fusedAppToken | The task ID of the Appdome fusion of the currently running app |
kernelInfo | Info about the kernel: system name, node name, release, version and machine. |
carrierPlmn | PLMN of the device |
deviceID | Current device ID |
reasonCode | Reason code of the occured event |
buildDate | Appdome fusion date of the current application |
devicePlatform | OS name of the current device |
carrierName | Carrier name of the current device |
updatedOSVersion | Is the OS version up to date |
deviceBrand | Brand of the device |
deviceBoard | Board of the device |
buildUser | Build user |
buildHost | Build host |
sdkVersion | Sdk version |
timeZone | Time zone |
deviceFaceDown | Is the device face down |
locationLong | Location long |
locationLat | Location lat |
locationState | Location state |
wifiSsid | Wifi SSID |
wifiSsidPermissionStatus | Wifi SSID permission status |
host | Failed host |
IncompatibleCipherId | Failed cipher ID |
DeveventDetailedErrorMessage | Error message |
extendedMessageText | Extended message |
With Threat-Events™ enabled (turned ON), Mobile developers can get detailed attack intelligence and granular defense control in Mobile applications and create amazing user experiences for all mobile end users when TLS Cipher Suites are detected.
The following is a code sample for native Mobile apps, which uses all values in the specification above for Enforce Cipher Suites:
IntentFilter intentFilter = new IntentFilter();
intentFilter.addAction("SslIncompatibleCipher");
registerReceiver(new BroadcastReceiver() {
public void onReceive(Context context, Intent intent) {
String message = intent.getStringExtra("message"); // Message shown to the user
String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
String variable = intent.getStringExtra("<Context Key>"); // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}, intentFilter);
val intentFilter = IntentFilter()
intentFilter.addAction("SslIncompatibleCipher")
registerReceiver(object : BroadcastReceiver() {
override fun onReceive(context: Context?, intent: Intent?) {
var message = intent.getStringExtra("message") // Message shown to the user
var reasonData = intent.getStringExtra("reasonData") // Threat detection cause
var reasonCode = intent.getStringExtra("reasonCode") // Event reason code
var currentThreatEventScore = intent.getStringExtra("currentThreatEventScore") // Current threat event score
var threatEventsScore = intent.getStringExtra("threatEventsScore") // Total threat events score
var variable = intent.getStringExtra("<Context Key>") // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}, intentFilter)
let center = NotificationCenter.default
center.addObserver(forName: Notification.Name("SslIncompatibleCipher"), object: nil, queue: nil) { (note) in
guard let usrInf = note.userInfo else {
return
}
let message = usrInf["message"]; // Message shown to the user
let reasonData = usrInf["reasonData"]; // Threat detection cause
let reasonCode = usrInf["reasonCode"]; // Event reason code
let currentThreatEventScore = usrInf["currentThreatEventScore"]; // Current threat event score
let threatEventsScore = usrInf["threatEventsScore"]; // Total threat events score
let variable = usrInf["<Context Key>"]; // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
[[NSNotificationCenter defaultCenter] addObserverForName: @"SslIncompatibleCipher" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
__block NSNotification *note = org_note;
dispatch_async(dispatch_get_main_queue(), ^(void) {
var threatEventsScore = intent.getStringExtra("threatEventsScore")
NSString *message = [[note userInfo] objectForKey:@"message"]; // Message shown to the user
NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"]; // Threat detection cause
NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"]; // Event reason code
NSString *currentThreatEventScore = [[note userInfo] objectForKey:@"currentThreatEventScore"]; // Current threat event score
NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"]; // Total threat events score
NSString *variable = [[note userInfo] objectForKey:@"<Context Key>"]; // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
}];
const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
function registerToDevEvent(action, callback) {
NativeModules.ADDevEvents.registerForDevEvent(action);
aDDevEvents.addListener(action, callback);
}
export function registerToAllEvents() {
registerToDevEvent(
"SslIncompatibleCipher",
(userinfo) => Alert.alert(JSON.stringify(userinfo))
var message = userinfo["message"] // Message shown to the user
var reasonData = userinfo["reasonData"] // Threat detection cause
var reasonCode = userinfo["reasonCode"] // Event reason code
var currentThreatEventScore = userinfo["currentThreatEventScore"] // Current threat event score
var threatEventsScore = userinfo["threatEventsScore"] // Total threat events score
var variable = userinfo["<Context Key>"] // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
);
}
RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("SslIncompatibleCipher"));
class ThreatEventReceiver : BroadcastReceiver
{
public override void OnReceive(Context context, Intent intent)
{
String message = intent.getStringExtra("message"); // Message shown to the user
String reasonData = intent.getStringExtra("reasonData"); // Threat detection cause
String reasonCode = intent.getStringExtra("reasonCode"); // Event reason code
String currentThreatEventScore = intent.getStringExtra("currentThreatEventScore"); // Current threat event score
String threatEventsScore = intent.getStringExtra("threatEventsScore"); // Total threat events score
String variable = intent.getStringExtra("<Context Key>"); // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}
window.broadcaster.addEventListener("SslIncompatibleCipher", function(userInfo) {
var message = userInfo.message // Message shown to the user
var reasonData = userInfo.reasonData // Threat detection cause
var reasonCode = userInfo.reasonCode // Event reason code
var currentThreatEventScore = userInfo.currentThreatEventScore // Current threat event score
var threatEventsScore = userInfo.threatEventsScore // Total threat events score
var variable = userInfo.<Context Key> // Any other event specific context key
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
Prerequisites to Using Enforce Cipher Suites:
To use Appdome’s mobile app security build system to Enforce TLS Cipher Suites , you’ll need:
- Appdome account (create a free Appdome account here)
- A license for Enforce Cipher Suites
- Mobile App (.ipa For iOS device or .apk or .aab For Mobile)
- Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)
Using Appdome, there are no development or coding prerequisites to build secured Mobile Apps by using Enforce Cipher Suites. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.
Releasing and Publishing Mobile Apps with Enforce Cipher Suites
After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:
- Customizing, Configuring & Branding Secure Mobile Apps
- Deploying/Publishing Secure mobile apps to Public or Private app stores
- Releasing Secured Android & iOS Apps built on Appdome.
All apps protected by Appdome are fully compatible with any public app store, including Apple App Store, Google Play, Huawei App Gallery and more.
Features Similar to Enforce Cipher Suites
Here are a few related resources:
Check this document about cipher-suites from OpenSSL.org.
If you are interested in limiting other aspects of TLS, you should check out how you can Enforce Certificate Roles or Enforce TLS Version.
If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.
Thank you!
Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.
