How to Protect Android & iOS Apps from Screen Sharing Malware

Last updated August 28, 2023 by Appdome

Learn to Prevent Screen Sharing in Mobile apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

Why Prevent Screen Sharing in Mobile Apps?

Even when communication and data transfer from an app is restricted, screen sharing, screen recording, and screenshots may still be used for extracting sensitive data. Preventing these functionalities adds additional protection against data leakage as part of a data loss prevention (DLP) strategy.

How does Appdome Prevent Screen Sharing?

In Android, Appdome protected apps continue to function while screenshots, screen recordings, and mirroring appear with a black overlay, except on secure displays (for example, Google Chromecast and Google Home). In iOS, as only Apple can prevent screenshots on the device, Appdome detects when an external screen recording or mirroring was activated and displays a notification to alert users that taking screenshots is not a permitted action.

Prevent Screen Sharing on Mobile apps using Appdome

On Appdome, follow these 3 simple steps to create self-defending Mobile Apps that Prevent Screen Sharing without an SDK or gateway:

  1. Upload the Mobile App to Appdome.

    1. Upload an app to Appdome’s Mobile App Security Build System

    2. Upload Method: Appdome Console or DEV-API
    3. Mobile App Formats: .ipa For iOS device or .apk or .aab
    4. Prevent App Screen Sharing Compatible With: Obj-C, C+, Java, JS, C#, C++, Swift, Kotlin, Flutter, React Native, Unity, Xamarin, and more
  2. Build the feature: Prevent App Screen Sharing.

    1. Building Prevent App Screen Sharing by using Appdome’s DEV-API:

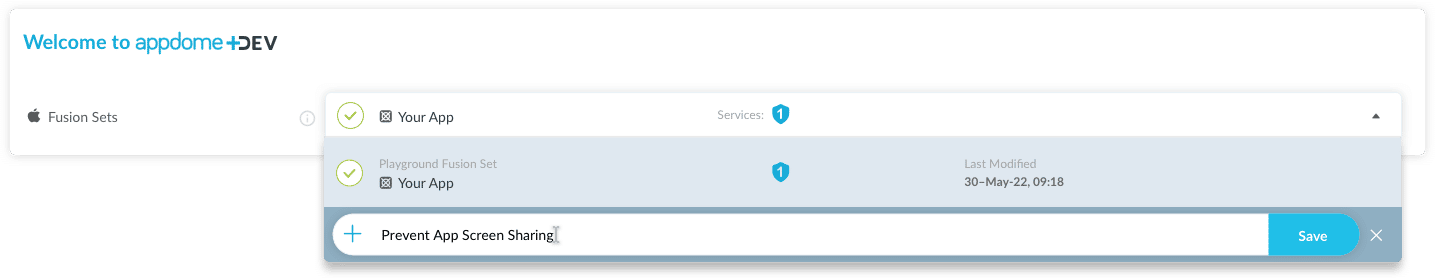

      1. Create and name the Fusion Set (security template) that will contain the Prevent App Screen Sharing feature as shown below:
      2. fusion set that contains Prevent App Screen Sharing

        Figure 1: Fusion Set that will contain the Prevent App Screen Sharing feature
        Note: Naming the Fusion Set to correspond to the protection(s) selected is for illustration purposes only (not required).

      3. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Prevent App Screen Sharing feature via Appdome Console, to add the Prevent App Screen Sharing feature to this Fusion Set.

      4. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set, as shown in Figure 1 above, and get the Fusion Set ID from the Fusion Set Detail Summary (as shown below): fusion Set Detail Summary image

        Figure 2: Fusion Set Detail Summary
        Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).

      5. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Cirlce CI or other system:
        1. Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide
        2. Look for sample APIs in Appdome’s GitHub Repository
    2. Building the Prevent App Screen Sharing feature via Appdome Console

      To build the Prevent App Screen Sharing protection by using Appdome Console, follow the instructions below.

      1. Where: Inside the Appdome Console, go to Build > Security Tab > Mobile Privacy section

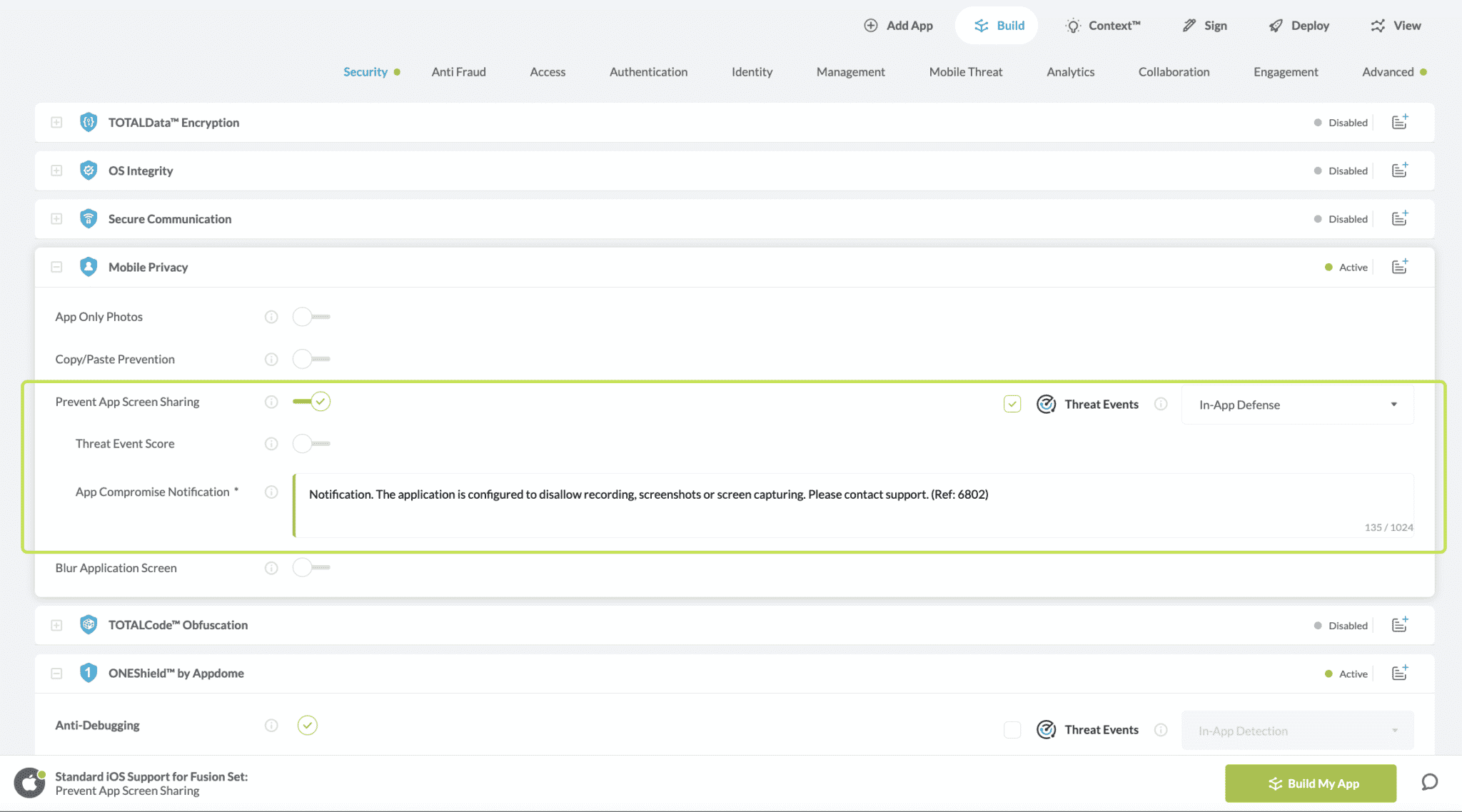

      2. How: Toggle (turn ON) Prevent App Screen Sharing, as shown below.
        If needed, Customize the Threat Notification to be displayed to the mobile end-user in a standard OS dialog notification when Appdome Prevents Screen Sharing. Prevent App Screen Sharing option

        Figure 3: Prevent Screen Sharing option
        Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.

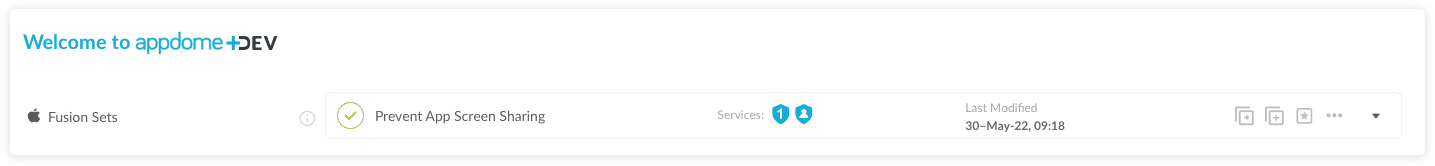

      3. When you select the Prevent App Screen Sharing you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Prevent App Screen Sharing

        Fusion Set applied Prevent App Screen Sharing

        Figure 4: Fusion Set that displays the newly added Prevent App Screen Sharing protection

      4. Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Prevent App Screen Sharing:
        1. Threat-Events™ OFF > In-App Defense

          If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Prevent Screen Sharing.

        2. Threat-Events™ ON > In-App Detection

          When this setting is used, Appdome detects Screen being shared and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Prevent App Screen Sharing Intelligence and Control in Mobile Apps.

        3. Threat-Events™ ON > In-App Defense

          When this setting is used, Appdome detects and defends against Screen Sharing (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Prevent App Screen Sharing Intelligence and Control in Mobile Apps.

      5. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
    Congratulations!  The Prevent App Screen Sharing protection is now added to the mobile app
  3. Certify the Prevent App Screen Sharing feature in Mobile Apps.

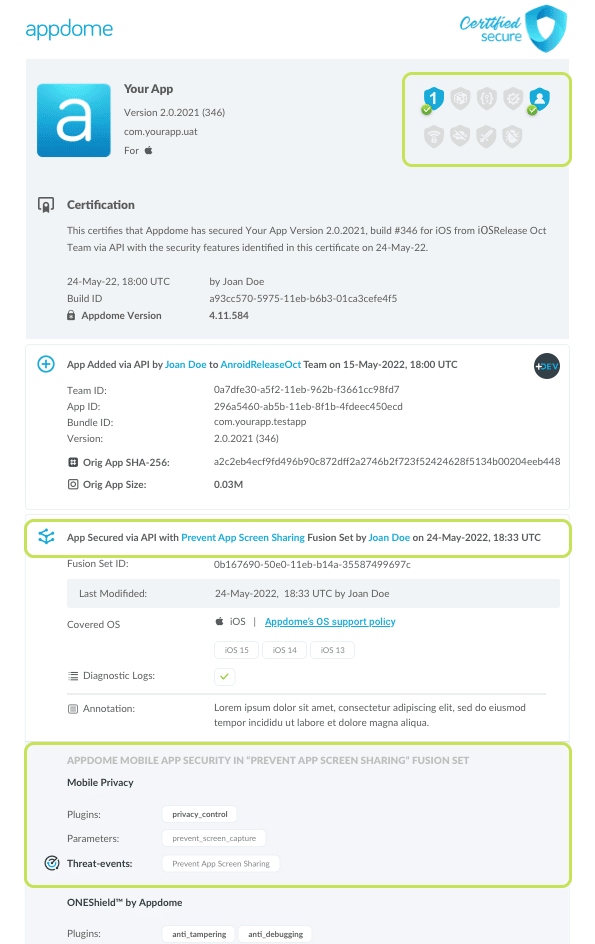

    After building Prevent App Screen Sharing, Appdome generates a Certified Secure™ certificate to guarantee that the Prevent App Screen Sharing protection has been added and is protecting the app. To verify that the Prevent App Screen Sharing protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below: Prevent App Screen Sharing shown in Certificate secure

    Figure 5: Certified Secure™ certificate

    Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Prevent App Screen Sharing has been added to each Mobile app. Certified Secure provides instant and in-line DevSecOps compliance certification that Prevent App Screen Sharing and other mobile app security features are in each build of the mobile app

Using Threat-Events™ for Screen Sharing Intelligence and Control in Mobile Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Screen Sharing is detected. To consume and use Threat-Events™ for Screen Sharing in Mobile Apps, use AddObserverForName in Notification Center, and the code samples for Threat-Events™ for Screen Sharing shown below.

The specifications and options for Threat-Events™ for Screen Sharing are:

Threat-Event™ Elements Prevent Screen Sharing Method Detail
Appdome Feature Name Prevent App Screen Sharing
Threat-Event Mode
OFF, IN-APP DEFENSE Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check
Visible in ThreatScope™
Developer Parameters for Preventing Screen Sharing Threat-Event™
Threat-Event NAME BlockedScreenCaptureEvent
Threat-Event DATA reasonData
Threat-Event CODE reasonCode
Threat-Event REF 6802
Threat-Event SCORE
currentThreatEventScore Current Threat-Event score
threatEventsScore Total Threat-events score
Threat-Event Context Keys
message Message displayed for the user on event
externalID The external ID of the event which can be listened via Threat Events
osVersion OS version of the current device
deviceModel Current device model
deviceManufacturer The manufacturer of the current device
fusedAppToken The task ID of the Appdome fusion of the currently running app
kernelInfo Info about the kernel: system name, node name, release, version and machine.
carrierPlmn PLMN of the device
deviceID Current device ID
reasonCode Reason code of the occured event
buildDate Appdome fusion date of the current application
devicePlatform OS name of the current device
carrierName Carrier name of the current device
updatedOSVersion Is the OS version up to date
deviceBrand Brand of the device
deviceBoard Board of the device
buildUser Build user
buildHost Build host
sdkVersion Sdk version
timeZone Time zone
deviceFaceDown Is the device face down
locationLong Location long
locationLat Location lat
locationState Location state
wifiSsid Wifi SSID
wifiSsidPermissionStatus Wifi SSID permission status
context Context of the security event

With Threat-Events™ enabled (turned ON), Mobile developers can get detailed attack intelligence and granular defense control in Mobile applications and create amazing user experiences for all mobile end users when Screen Sharing is detected.

The following is a code sample for native Mobile apps, which uses all values in the specification above for Prevent App Screen Sharing:

Prerequisites to Using Prevent App Screen Sharing:

To use Appdome’s mobile app security build system to Prevent Screen Sharing , you’ll need:

Using Appdome, there are no development or coding prerequisites to build secured Mobile Apps by using Prevent App Screen Sharing. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Prevent App Screen Sharing

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:

All apps protected by Appdome are fully compatible with any public app store, including Apple App Store, Google Play, Huawei App Gallery and more.

Related Articles:

For more information on Data Loss Protection, check out this blog. To zoom out on this topic, visit Appdome for Mobile App Security on our website, or request a demo at any time.

If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.
