How to Detect Fake Location in iOS Apps

Last updated February 18, 2024 by Appdome

Learn to Detect Fake Location in iOS apps, in mobile CI/CD with a Data-Driven DevSecOps™ build system.

What Is GPS Fake Location?

Fake GPS Location in an iOS mobile app refers to modifying the location data transmitted by the Global Positioning System (GPS). This makes it appear as though the device is located in a different place than it actually is by modifying the GPS location returned by the app’s Apple API. Fake GPS / GPS spoofing can also be used for malicious purposes, such as to deceive someone into believing that the user is in a different location for the purpose of carrying out fraudulent activities.

Using fake GPS or GPS spoofing in an iOS mobile app can have both practical and harmful applications, depending on the user’s intent.

Why Detect Fake GPS in iOS Apps?

The GPS API helps to redirect the user to certain flows and provide more accurate data and options based on their geographical location. However, there are certain situations, where this feature becomes a vulnerability, attackers can manipulate this behavior by intercepting access to the GPS API provided to the app’s developers. They achieve this by changing the user’s location returned by the API, thus misleading the app to believe that the user is in a different location than they actually are. This can result in unintended flows beginning to appear in the app. To mitigate this issue, Appdome scans for installed hooks using various standard reverse engineering tools and frameworks related to GPS APIs to prevent modification of access to GPS.

Prerequisites for Using Detect Fake Location:

To use Appdome’s mobile app security build system to Detect Fake Location , you’ll need:

Appdome account (create a free Appdome account here)
A license for Detect Fake Location
Mobile App (.ipa for iOS)
Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)

Detect Fake Location on iOS apps using Appdome

On Appdome, follow these 3 simple steps to create self-defending iOS Apps that Detect Fake Location without an SDK or gateway:

Upload the Mobile App to Appdome.
1. Upload an app to Appdome’s Mobile App Security Build System
2. Upload Method: Appdome Console or DEV-API
3. iOS Formats: .ipa
4. Detect Fake Location Compatible With: Obj-C, C+, Java, Swift, Flutter, React Native, Unity, Xamarin, Cordova and more
Build the feature: Detect Fake Location.
1. Building Detect Fake Location by using Appdome’s DEV-API:
  1. Create and name the Fusion Set (security template) that will contain the Detect Fake Location feature as shown below:
  2. Follow the steps in Sections 2.2.1-2.2.2 of this article, Building the Detect Fake Location feature via Appdome Console, to add the Detect Fake Location feature to this Fusion Set.
  3. Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set, as shown in Figure 1 above, and get the Fusion Set ID from the Fusion Set Detail Summary (as shown below):

    Figure 2: Fusion Set Detail Summary
    Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory).
  4. Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, App Center, Jenkins, Travis, Team City, Cirlce CI or other system:

    Build an API for the app – for instructions, see the tasks under Appdome API Reference Guide

    Look for sample APIs in Appdome’s GitHub Repository
2. Building the Detect Fake Location feature via Appdome Console

  To build the Detect Fake Location protection by using Appdome Console, follow the instructions below.
  1. Where: Inside the Appdome Console, go to Build > Security Tab > Secure Communication section.
    Like all other options in ONEShield™, Detect Fake Location is turned on by default, as shown below:

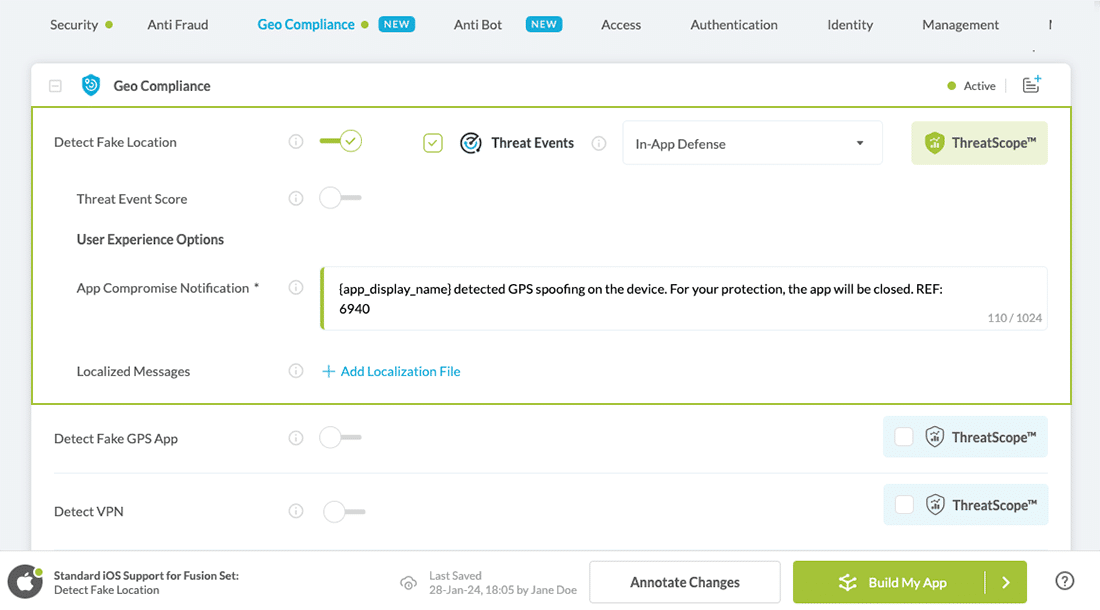

    Figure 3: Detect Fake Location option
    Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
  2. How: Toggle (turn ON) Detect Fake Location, as shown below.
    If needed, Customize the Threat Notification to be displayed to the mobile end-user in a standard OS dialog notification when Appdome Detects Fake Location.

    Figure 3: Detect Fake Location option
    Note: The App Compromise Notification contains an easy to follow default remediation path for the mobile app end user. You can customize this message as required to achieve brand specific support, workflow or other messaging.
  3. When you select the Detect Fake Location you'll notice that your Fusion Set you created in step 2.1.1 now bears the icon of the protection category that contains Detect Fake Location

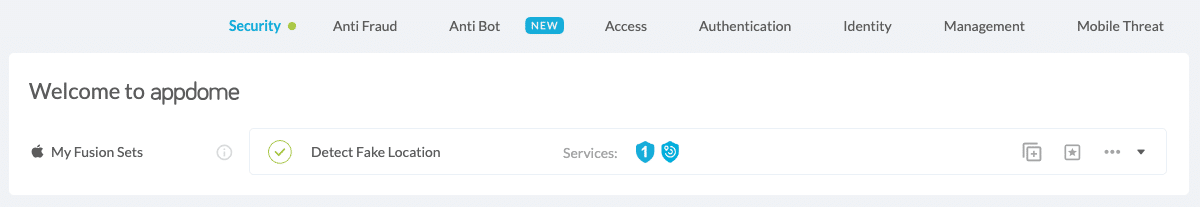

    Figure 4: Fusion Set that displays the newly added Detect Fake Location protection
  4. Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Detect Fake Location:

    Threat-Events™ OFF > In-App Defense
    If the Threat-Events™ setting is cleared (not selected). Appdome will detect and defend the user and app by enforcing Detect Fake Location.

    Threat-Events™ ON > In-App Detection
    When this setting is used, Appdome detects when hooking frameworks and other methods are used to modify values returned by the GPS API and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Detect Fake Location Intelligence and Control in Mobile Apps.

    Threat-Events™ ON > In-App Defense
    When this setting is used, Appdome detects and defends against Fake Location (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Detect Fake Location Intelligence and Control in Mobile Apps.
  5. Click Build My App at the bottom of the Build Workflow (shown in Figure 3).
Congratulations! The Detect Fake Location protection is now added to the mobile app
Certify the Detect Fake Location feature in iOS Apps.

After building Detect Fake Location, Appdome generates a Certified Secure™ certificate to guarantee that the Detect Fake Location protection has been added and is protecting the app. To verify that the Detect Fake Location protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

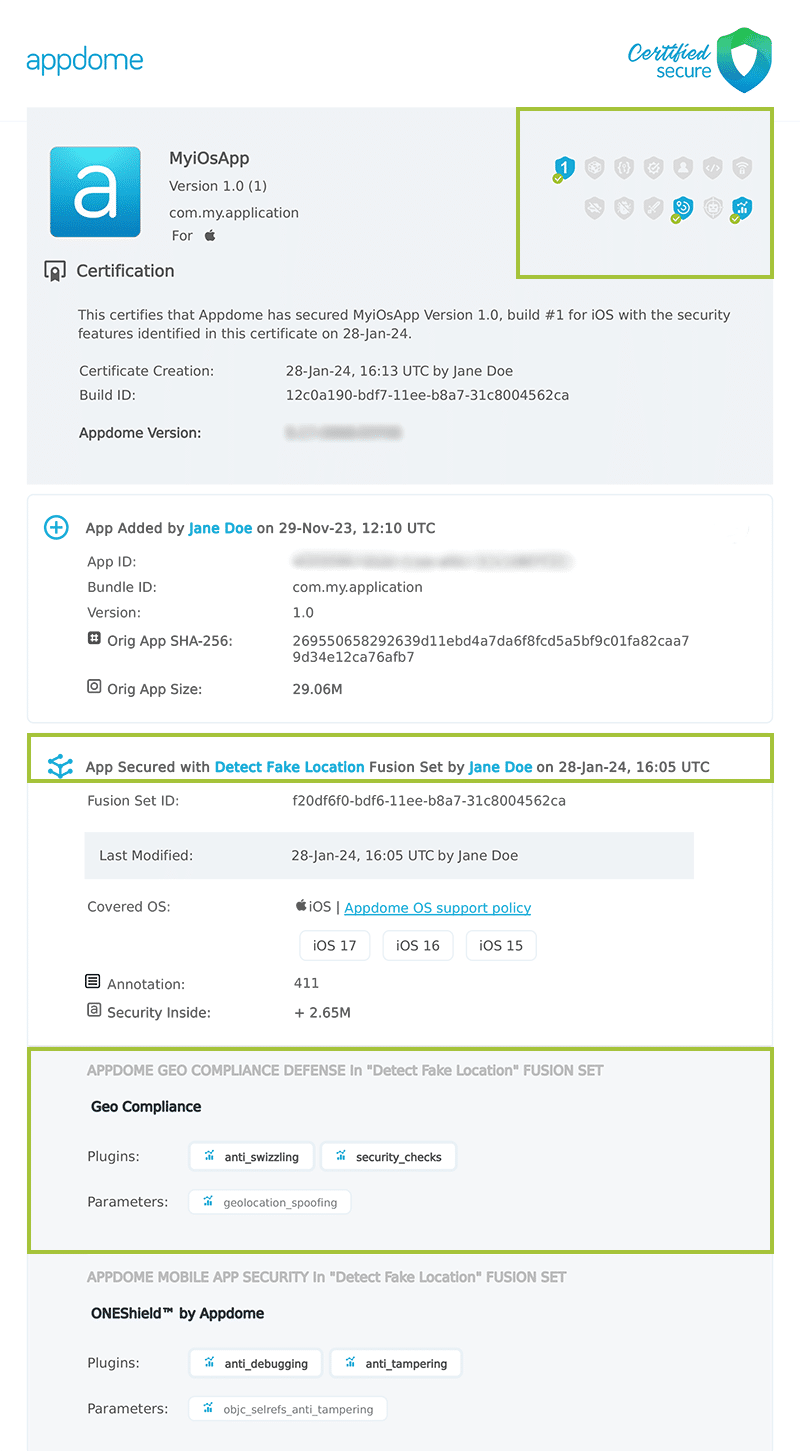

Figure 5: Certified Secure™ certificate

Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Detect Fake Location has been added to each iOS app. Certified Secure provides instant and in-line DevSecOps compliance certification that Detect Fake Location and other mobile app security features are in each build of the mobile app

Using Threat-Events™ for Fake Location Intelligence and Control in iOS Apps

Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when Fake Location is detected. To consume and use Threat-Events™ for Fake Location in iOS Apps, use AddObserverForName in Notification Center, and the code samples for Threat-Events™ for Fake Location shown below.

The specifications and options for Threat-Events™ for Fake Location are:

Threat-Event™ Elements	Detect Fake Location Method Detail
Appdome Feature Name	Detect Fake Location
Threat-Event Mode
OFF, IN-APP DEFENSE	Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging.
ON, IN-APP DETECTION	Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce).
ON, IN-APP DEFENSE	Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection).
Certified Secure™ Threat Event Check
Visible in ThreatScope™
Developer Parameters for Detecting Fake Location Threat-Event™
Threat-Event NAME	GeoLocationSpoofingDetected
Threat-Event DATA	reasonData
Threat-Event CODE	reasonCode
Threat-Event REF	6801
Threat-Event SCORE
currentThreatEventScore	Current Threat-Event score
threatEventsScore	Total Threat-events score

Threat-Event Context Keys
message	Message displayed for the user on event
externalID	The external ID of the event which can be listened via Threat Events
osVersion	OS version of the current device
deviceModel	Current device model
deviceManufacturer	The manufacturer of the current device
fusedAppToken	The task ID of the Appdome fusion of the currently running app
kernelInfo	Info about the kernel: system name, node name, release, version and machine.
carrierPlmn	PLMN of the device
deviceID	Current device ID
reasonCode	Reason code of the occured event
buildDate	Appdome fusion date of the current application
devicePlatform	OS name of the current device
carrierName	Carrier name of the current device
updatedOSVersion	Is the OS version up to date
timeZone	Time zone
deviceFaceDown	Is the device face down
locationLong	Location longitude conditioned by location permission
locationLat	Location latitude conditioned by location permission
locationState	Location state conditioned by location permission
wifiSsid	Wifi SSID
wifiSsidPermissionStatus	Wifi SSID permission status

With Threat-Events™ enabled (turned ON), iOS developers can get detailed attack intelligence and granular defense control in iOS applications and create amazing user experiences for all mobile end users when Fake Location is detected.

The following is a code sample for native iOS apps, which uses all values in the specification above for Detect Fake Location:

let center = NotificationCenter.default
                center.addObserver(forName: Notification.Name("GeoLocationSpoofingDetected"), object: nil, queue: nil) { (note) in
                    guard let usrInf = note.userInfo else {
                        return
                    }

                    let message = usrInf["message"]; // Message shown to the user
                    let reasonData = usrInf["reasonData"]; // Threat detection cause
                    let reasonCode = usrInf["reasonCode"]; // Event reason code
                    let currentThreatEventScore = usrInf["currentThreatEventScore"]; // Current threat event score
                    let threatEventsScore = usrInf["threatEventsScore"]; // Total threat events score
                    let variable = usrInf["<Context Key>"]; // Any other event specific context key

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }


                        Swift

​x

let center = NotificationCenter.default
center.addObserver(forName: Notification.Name("GeoLocationSpoofingDetected"), object: nil, queue: nil) { (note) in
    guard let usrInf = note.userInfo else {
        return
    }
​
    let message = usrInf["message"]; // Message shown to the user
    let reasonData = usrInf["reasonData"]; // Threat detection cause
    let reasonCode = usrInf["reasonCode"]; // Event reason code
    let currentThreatEventScore = usrInf["currentThreatEventScore"]; // Current threat event score
    let threatEventsScore = usrInf["threatEventsScore"]; // Total threat events score
    let variable = usrInf["<Context Key>"]; // Any other event specific context key
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

[[NSNotificationCenter defaultCenter] addObserverForName:  "GeoLocationSpoofingDetected" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
                    __block NSNotification *note = org_note;
                    dispatch_async(dispatch_get_main_queue(), ^(void) {
                        NSString *message = [[note userInfo] objectForKey:@"message"]; // Message shown to the user
                        NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"]; // Threat detection cause
                        NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"]; // Event reason code
                        NSString *currentThreatEventScore = [[note userInfo] objectForKey:@"currentThreatEventScore"]; // Current threat event score
                        NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"]; // Total threat events score
                        NSString *variable = [[note userInfo] objectForKey:@"<Context Key>"]; // Any other event specific context key

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    });
                }];


                        Objective-C

​x

[[NSNotificationCenter defaultCenter] addObserverForName:  @"GeoLocationSpoofingDetected" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
    __block NSNotification *note = org_note;
    dispatch_async(dispatch_get_main_queue(), ^(void) {
        NSString *message = [[note userInfo] objectForKey:@"message"]; // Message shown to the user
        NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"]; // Threat detection cause
        NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"]; // Event reason code
        NSString *currentThreatEventScore = [[note userInfo] objectForKey:@"currentThreatEventScore"]; // Current threat event score
        NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"]; // Total threat events score
        NSString *variable = [[note userInfo] objectForKey:@"<Context Key>"]; // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    });
}];

const { ADDevEvents } = NativeModules;
                const aDDevEvents = new NativeEventEmitter(ADDevEvents);

                function registerToDevEvent(action, callback) {
                    NativeModules.ADDevEvents.registerForDevEvent(action);
                    aDDevEvents.addListener(action, callback);
                }

                export function registerToAllEvents() {
                    registerToDevEvent(
                        "GeoLocationSpoofingDetected",
                        (userinfo) => Alert.alert(JSON.stringify(userinfo))

                        var message = userinfo["message"] // Message shown to the user
                        var reasonData = userinfo["reasonData"] // Threat detection cause
                        var reasonCode = userinfo["reasonCode"] // Event reason code
                        var currentThreatEventScore = userinfo["currentThreatEventScore"] // Current threat event score
                        var threatEventsScore = userinfo["threatEventsScore"] // Total threat events score
                        var variable = userinfo["<Context Key>"] // Any other event specific context key

                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    );
                }


                    React Native

​x

const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
​
function registerToDevEvent(action, callback) {
    NativeModules.ADDevEvents.registerForDevEvent(action);
    aDDevEvents.addListener(action, callback);
}
​
export function registerToAllEvents() {
    registerToDevEvent(
        "GeoLocationSpoofingDetected",
        (userinfo) => Alert.alert(JSON.stringify(userinfo))
​
        var message = userinfo["message"] // Message shown to the user
        var reasonData = userinfo["reasonData"] // Threat detection cause
        var reasonCode = userinfo["reasonCode"] // Event reason code
        var currentThreatEventScore = userinfo["currentThreatEventScore"] // Current threat event score
        var threatEventsScore = userinfo["threatEventsScore"] // Total threat events score
        var variable = userinfo["<Context Key>"] // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
    );
}
​

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("GeoLocationSpoofingDetected"));
                class ThreatEventReceiver : BroadcastReceiver
                {
                public override void OnReceive(Context context, Intent intent)
                {
                    String message = intent.GetStringExtra("message"); // Message shown to the user
                    String reasonData = intent.GetStringExtra("reasonData"); // Threat detection cause
                    String reasonCode = intent.GetStringExtra("reasonCode"); // Event reason code
                    String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore"); // Current threat event score
                    String threatEventsScore = intent.GetStringExtra("threatEventsScore"); // Total threat events score
                    String variable = intent.GetStringExtra("<Context Key>"); // Any other event specific context key

                    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }
                }


                    Xamarin/MAUI Android

​x

RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("GeoLocationSpoofingDetected"));
​
class ThreatEventReceiver : BroadcastReceiver
{
  public override void OnReceive(Context context, Intent intent)
  {
    String message = intent.GetStringExtra("message"); // Message shown to the user
    String reasonData = intent.GetStringExtra("reasonData"); // Threat detection cause
    String reasonCode = intent.GetStringExtra("reasonCode"); // Event reason code
    String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore"); // Current threat event score
    String threatEventsScore = intent.GetStringExtra("threatEventsScore"); // Total threat events score
    String variable = intent.GetStringExtra("<Context Key>"); // Any other event specific context key
​
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
  }
}

                NSNotificationCenter.DefaultCenter.AddObserver(
                    (NSString)"JailbrokenDevice", // Threat-Event Identifier
                    delegate (NSNotification notification)
                    {
                        var message = notification.UserInfo.ObjectForKey("message"); // Message shown to the user
                        var reasonData = notification.UserInfo.ObjectForKey("reasonData"); // Threat detection cause
                        var reasonCode = notification.UserInfo.ObjectForKey("reasonCode"); // Event reason code
                        var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore"); // Current threat event score
                        var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore"); // Total threat events score
                        var variable = notification.UserInfo.ObjectForKey(""); // Any other event specific context key
                        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                    });


                    Xamarin/MAUI iOS


NSNotificationCenter.DefaultCenter.AddObserver(
  (NSString)"GeoLocationSpoofingDetected", // Threat-Event Identifier
  delegate (NSNotification notification)
  {
    var message = notification.UserInfo.ObjectForKey("message"); // Message shown to the user
    var reasonData = notification.UserInfo.ObjectForKey("reasonData"); // Threat detection cause
    var reasonCode = notification.UserInfo.ObjectForKey("reasonCode"); // Event reason code
    var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore"); // Current threat event score
    var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore"); // Total threat events score
    var variable = notification.UserInfo.ObjectForKey("<Context Keys>"); // Any other event specific context key
    // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
  });

window.broadcaster.addEventListener("GeoLocationSpoofingDetected", function(userInfo) {
        var message = userInfo.message // Message shown to the user
        var reasonData = userInfo.reasonData // Threat detection cause
        var reasonCode = userInfo.reasonCode // Event reason code
        var currentThreatEventScore = userInfo.currentThreatEventScore // Current threat event score
        var threatEventsScore = userInfo.threatEventsScore // Total threat events score
        var variable = userInfo.<Context Key> // Any other event specific context key

        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
            });


                    Cordova

​x

window.broadcaster.addEventListener("GeoLocationSpoofingDetected", function(userInfo) {
        var message = userInfo.message // Message shown to the user
        var reasonData = userInfo.reasonData // Threat detection cause
        var reasonCode = userInfo.reasonCode // Event reason code
        var currentThreatEventScore = userInfo.currentThreatEventScore // Current threat event score
        var threatEventsScore = userInfo.threatEventsScore // Total threat events score
        var variable = userInfo.<Context Key> // Any other event specific context key
​
        // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});

                import 'dart:async';
                import 'package:flutter/material.dart';
                import 'package:flutter/services.dart';

                class PlatformChannel extends StatefulWidget {
                  const PlatformChannel({super.key});

                  @override
                  State<PlatformChannel> createState() => _PlatformChannelState();
                }

                class _PlatformChannelState extends State<PlatformChannel> {
                  static const String _eventChannelName = "GeoLocationSpoofingDetected"; // Replace with your EventChannel name
                  static const EventChannel _eventChannel = EventChannel(_eventChannelName);

                  @override
                  void initState() {
                    super.initState();
                    _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
                  }

                  void _onEvent(Object? event) {
                    setState(() {
                      // Adapt this section based on your specific event data structure
                      var eventData = event as Map;

                      // Example: Accessing 'externalID' field from the event
                      var externalID = eventData['externalID'];

                      // Customize the rest of the fields based on your event structure
                      String message = eventData['message']; // Message shown to the user
                      String reasonData = eventData['reasonData']; // Threat detection cause
                      String reasonCode = eventData['reasonCode']; // Event reason code
                      String currentThreatEventScore = eventData['currentThreatEventScore']; // Current threat event score
                      String threatEventsScore = eventData['threatEventsScore']; // Total threat events score

                      // Any other event specific context key
                      String variable = eventData['<Context Key>'];
                    });
                  }

                  // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
                }


                    Flutter

xxxxxxxxxx

import 'dart:async';
​
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
​
class PlatformChannel extends StatefulWidget {
  const PlatformChannel({super.key});
​
  @override
  State<PlatformChannel> createState() => _PlatformChannelState();
}
​
class _PlatformChannelState extends State<PlatformChannel> {
  static const String _eventChannelName = 'GeoLocationSpoofingDetected'; // Replace with your EventChannel name
  static const EventChannel _eventChannel = EventChannel(_eventChannelName);
​
  @override
  void initState() {
    super.initState();
    _eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
  }
​
  void _onEvent(Object? event) {
    setState(() {
      // Adapt this section based on your specific event data structure
      var eventData = event as Map;
​
      // Example: Accessing 'externalID' field from the event
      var externalID = eventData['externalID'];
​
      // Customize the rest of the fields based on your event structure
      String message = eventData['message']; // Message shown to the user
      String reasonData = eventData['reasonData']; // Threat detection cause
      String reasonCode = eventData['reasonCode']; // Event reason code
      String currentThreatEventScore = eventData['currentThreatEventScore']; // Current threat event score
      String threatEventsScore = eventData['threatEventsScore']; // Total threat events score
​
      // Any other event specific context key
      String variable = eventData['<Context Key>'];
    });
  }
​
  // Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}

Using Appdome, there are no development or coding prerequisites to build secured iOS Apps by using Detect Fake Location. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.

Releasing and Publishing Mobile Apps with Detect Fake Location

After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:

Customizing, Configuring & Branding Secure Mobile Apps
Deploying/Publishing Secure mobile apps to Public or Private app stores
Releasing Secured Android & iOS Apps built on Appdome.

If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.

Thank you!

Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.

How to Detect Fake Location in iOS Apps

What Is GPS Fake Location?

Why Detect Fake GPS in iOS Apps?

Prerequisites for Using Detect Fake Location:

Detect Fake Location on iOS apps using Appdome

Upload the Mobile App to Appdome.

Upload an app to Appdome’s Mobile App Security Build System

Build the feature: Detect Fake Location.

Building Detect Fake Location by using Appdome’s DEV-API:

Building the Detect Fake Location feature via Appdome Console

Certify the Detect Fake Location feature in iOS Apps.

Using Threat-Events™ for Fake Location Intelligence and Control in iOS Apps

Related Articles:

Thank you!

The First Ever Real-Time Defense Against Social Engineering Attacks

Mobile Geo Compliance: The fastest, easiest way to ensure integrity of mobile device location

Top 10 Reasons to Add MOBILEBot Defense to Your WAF Environment

4 Reasons Existing WAF Anti-Bot Solutions Fail To Protect Mobile
