How to Block AirPlay Using AI
This Knowledge Base article describes how to use Appdome’s AI/ML in your CI/CD pipeline to continuously deliver plugins that Block AirPlay in iOS apps.
Block AirPlay?
Block AirPlay is a mobile app protection that prevents iOS apps from being mirrored to external AirPlay-compatible devices. Attackers and malicious tools can exploit AirPlay mirroring to visually capture sensitive app content such as personal data, credentials, or transaction details. Because AirPlay mirrors the display in real time, it poses a major data exfiltration risk—especially in regulated industries like finance, healthcare, and enterprise apps. Traditional DLP tools often miss this channel since it’s OS-native and doesn’t trigger alerts. Blocking AirPlay is essential to prevent visual leaks, enforce data protection, and maintain compliance with standards like GDPR and HIPAA.
How Appdome Protects iOS Apps With Block AirPlay
Appdome’s dynamic Block AirPlay plugin monitors iOS runtime for unauthorized attempts to initiate screen mirroring through AirPlay and blocks the session before any visual content is shared. It ensures app screens cannot be streamed to unauthorized displays, preserving app confidentiality and integrity. This protection can be enabled on Appdome by first enabling the “Block Screensharing Scams and Malware” protection, and then turning on the toggle switch for “Block AirPlay”
Prerequisites for Using Appdome's Prevent Screen Sharing Scams & Malware > Block AirPlay Plugins:
To use Appdome’s mobile app security build system to Block AirPlay , you’ll need:
- Appdome account (create a free Appdome account here)
- A license for Prevent Screen Sharing Scams & Malware > Block AirPlay
- Mobile App (.ipa for iOS)
- Signing Credentials (see Signing Secure Android apps and Signing Secure iOS apps)
How to Implement Block AirPlay in iOS Apps Using Appdome
On Appdome, follow these 3 simple steps to create self-defending iOS Apps that Block AirPlay without an SDK or gateway:
-
Designate the Mobile App to be protected.
-
Upload an app via the Appdome Mobile Defense platform GUI or via Appdome’s DEV-API or CI/CD Plugins.
-
iOS Formats: .ipa
-
Prevent Screen Sharing Scams & Malware > Block AirPlay is compatible with: Obj-C, Java, Swift, Flutter, React Native, Unity, Xamarin, Cordova and other iOS apps.
-
-
Select the defense: Prevent Screen Sharing Scams & Malware > Block AirPlay.
-
-
Follow the steps in Sections 2.2-2.2.2 of this article to add the Prevent Screen Sharing Scams & Malware > Block AirPlay feature to your Fusion Set via the Appdome Console.
-
When you select the Prevent Screen Sharing Scams & Malware > Block AirPlay you'll notice that the Fusion Set you created in step 2.1 now bears the icon of the protection category that contains Prevent Screen Sharing Scams & Malware > Block AirPlay.

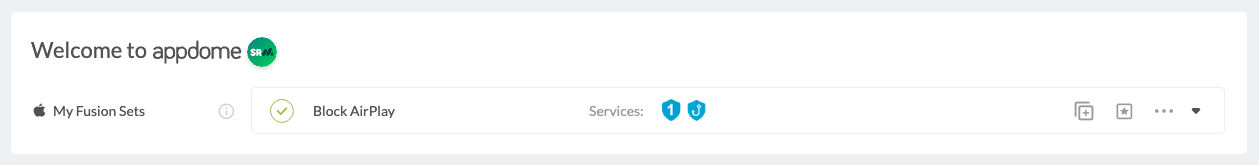

Figure 2: Fusion Set that displays the newly added Prevent Screen Sharing Scams & Malware > Block AirPlay protection
Note: Annotating the Fusion Set to identify the protection(s) selected is optional only (not mandatory). -
Open the Fusion Set Detail Summary by clicking the “...” symbol on the far-right corner of the Fusion Set. Copy the Fusion Set ID from the Fusion Set Detail Summary (as shown below):
Figure 3: Fusion Set Detail Summary
-
Follow the instructions below to use the Fusion Set ID inside any standard mobile DevOps or CI/CD toolkit like Bitrise, Jenkins, Travis, Team City, Circle CI or other system:
-
Refer to the Appdome API Reference Guide for API building instructions.
-
Look for sample APIs in Appdome’s GitHub Repository.
-
Create and name the Fusion Set (security template) that will contain the Prevent Screen Sharing Scams & Malware > Block AirPlay feature as shown below:Figure 1: Fusion Set that will contain the Prevent Screen Sharing Scams & Malware > Block AirPlay feature
-
-
Add the Prevent Screen Sharing Scams & Malware > Block AirPlay feature to your security template.
-

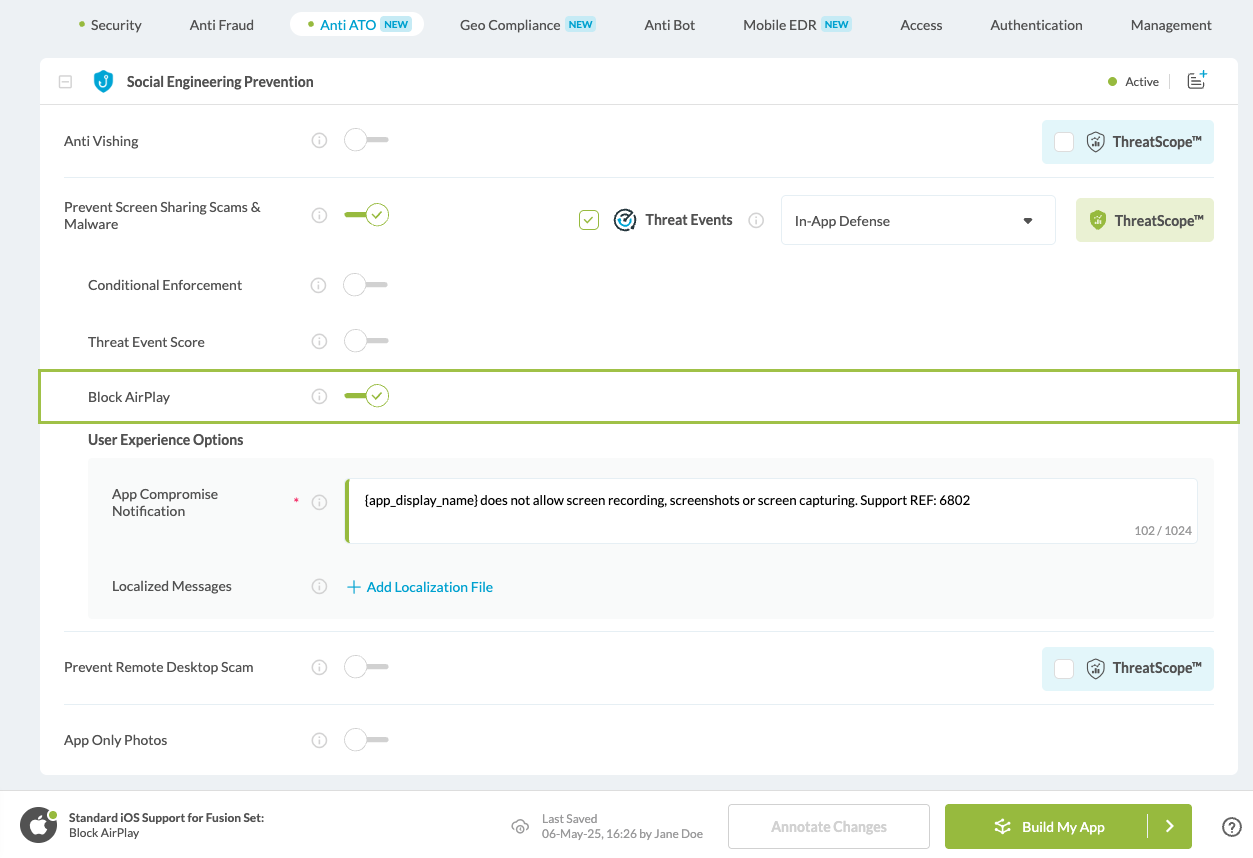

Navigate to Build > Anti ATO tab > Social Engineering Prevention section in the Appdome Console.
-
Toggle On > Prevent Screen Sharing Scams & Malware > Block AirPlay.
(a) Choose to monitor this attack vector by checking the Threat Events checkbox associated with Prevent Screen Sharing Scams & Malware > Block AirPlay as shown below.
(b) To receive mobile Threat Monitoring, check the ThreatScope™ box as shown below. For more details, see our knowledge base article on ThreatScope™ Mobile XTM.Figure 4: Selecting Block AirPlay
Note: The Appdome Platform displays the Mobile Operation Systems supported by each defense in real-time. For more details, see our OS Support Policy KB. -
Select the Threat-Event™ in-app mobile Threat Defense and Intelligence policy for Prevent Screen Sharing Scams & Malware > Block AirPlay:
-
Threat-Events™ OFF > In-App Defense
If the Threat-Events™ setting is not selected. Appdome will detect and defend user and app by enforcing Prevent Screen Sharing Scams & Malware > Block AirPlay.
-
Threat-Events™ ON > In-App Detection
When this setting is used, Appdome detects unauthorized screensharing abuse and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing, enforcement, and user notification. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Block Prevent Screen Sharing Scams & Malware > Block AirPlay Intelligence and Control in Mobile Apps.
-
Threat-Events™ ON > In-App Defense
When this setting is used, Appdome detects and defends against AirPlay (same as Appdome Enforce) and passes Appdome’s Threat-Event™ attack intelligence to the app’s business logic for processing. For more information on consuming and using Appdome Threat-Events™ in the app, see section Using Threat-Events™ for Block Prevent Screen Sharing Scams & Malware > Block AirPlay Intelligence and Control in Mobile Apps.
-
-
Configure the User Experience Options for Prevent Screen Sharing Scams & Malware > Block AirPlay:
With Threat-Events™ OFF, Appdome provides several user experience options for mobile brands and developers.- App Compromise Notification: Customize the pop-up or toast Appdome uses to notify the user when a threat is present while using the protected mobile app.
- Short message Option. This is available for mobile devices that allow a banner notification for security events.
-
Localized Message Option. Allows Appdome users to support global languages in security notifications.
Figure 5: Default User Experience Options for Appdome’s AirPlay
-
Prevent Screen Sharing Scams & Malware > Block AirPlay Threat Code™. Appdome uses AI/ML to generate a unique code each time Prevent Screen Sharing Scams & Malware > Block AirPlay is triggered by an active threat on the mobile device. Use the code in Appdome Threat Resolution Center™ to help end users identify, find and resolve active threats on the personal mobile devices.
-
Congratulations! The Prevent Screen Sharing Scams & Malware > Block AirPlay protection is now added to the mobile app -
-
Certify the Prevent Screen Sharing Scams & Malware > Block AirPlay feature in iOS Apps
After building Prevent Screen Sharing Scams & Malware > Block AirPlay, Appdome generates a Certified Secure™ certificate to guarantee that the Prevent Screen Sharing Scams & Malware > Block AirPlay protection has been added and is protecting the app. To verify that the Prevent Screen Sharing Scams & Malware > Block AirPlay protection has been added to the mobile app, locate the protection in the Certified Secure™ certificate as shown below:

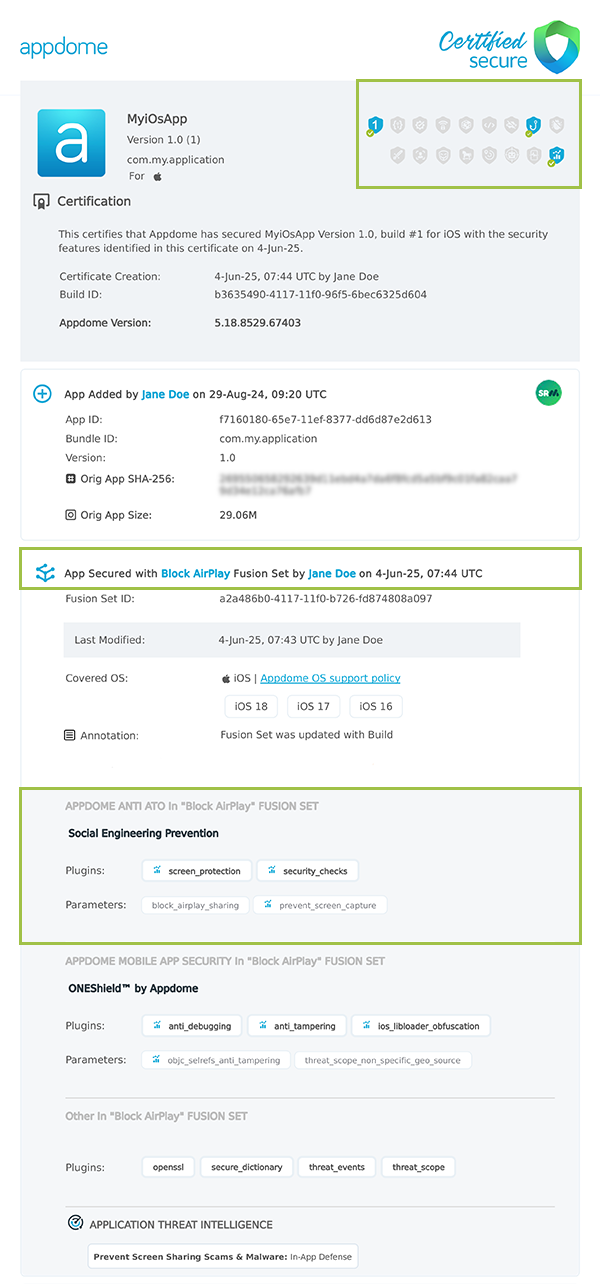

Figure 6: Certified Secure™ certificate
Each Certified Secure™ certificate provides DevOps and DevSecOps organizations the entire workflow summary, audit trail of each build, and proof of protection that Prevent Screen Sharing Scams & Malware > Block AirPlay has been added to each iOS app. Certified Secure provides instant and in-line DevSecOps compliance certification that Prevent Screen Sharing Scams & Malware > Block AirPlay and other mobile app security features are in each build of the mobile app.
Using Threat-Events™ for AirPlay Intelligence and Control in iOS Apps
Appdome Threat-Events™ provides consumable in-app mobile app attack intelligence and defense control when AirPlay is detected. To consume and use Threat-Events™ for AirPlay in iOS Apps, use AddObserverForName in Notification Center, and the code samples for Threat-Events™ for AirPlay shown below.
The specifications and options for Threat-Events™ for AirPlay are:
Threat-Event™ Elements | Block AirPlay Method Detail |
---|---|
Appdome Feature Name | Prevent Screen Sharing Scams & Malware > Block AirPlay |
Threat-Event Mode | |
OFF, IN-APP DEFENSE | Appdome detects, defends and notifies user (standard OS dialog) using customizable messaging. |
ON, IN-APP DETECTION | Appdome detects the attack or threat and passes the event in a standard format to the app for processing (app chooses how and when to enforce). |
ON, IN-APP DEFENSE | Uses Appdome Enforce mode for any attack or threat and passes the event in a standard format to the app for processing (gather intel on attacks and threats without losing any protection). |
Certified Secure™ Threat Event Check | |
Visible in ThreatScope™ | |
Developer Parameters for Blocking AirPlay Threat-Event™ | |
Threat-Event NAME | BlockedScreenCaptureEvent |
Threat-Event DATA | reasonData |
Threat-Event CODE | reasonCode |
Threat-Event REF | 6802 |
Threat-Event SCORE | |
currentThreatEventScore | Current Threat-Event score |
threatEventsScore | Total Threat-events score |
Threat-Event Context Keys | |
---|---|
message | Message displayed for the user on event |
externalID | The external ID of the event which can be listened via Threat Events |
osVersion | OS version of the current device |
deviceModel | Current device model |
deviceManufacturer | The manufacturer of the current device |
fusedAppToken | The task ID of the Appdome fusion of the currently running app |
kernelInfo | Info about the kernel: system name, node name, release, version and machine. |
deviceID | Current device ID |
reasonCode | Reason code of the occurred event |
threatCode | The last six characters of the threat code specify the OS, allowing the Threat Resolution Center to address the attack on the affected device. |
context | Context of the security event |
With Threat-Events™ enabled (turned ON), iOS developers can get detailed attack intelligence and granular defense control in iOS applications and create amazing user experiences for all mobile end users when AirPlay is detected.
The following is a code sample for native iOS apps, which uses all values in the specification above for Prevent Screen Sharing Scams & Malware > Block AirPlay:
Important! Replace all placeholder instances of <Context Key> with the specific name of your threat event context key across all language examples. This is crucial to ensure your code functions correctly with the intended event data. For example, The <Context Key> could be the message, externalID, OS Version, reason code, etc.
x
let center = NotificationCenter.default
center.addObserver(forName: Notification.Name("BlockedScreenCaptureEvent"), object: nil, queue: nil) { (note) in
guard let usrInf = note.userInfo else {
return
}
let message = usrInf["message"]; // Message shown to the user
let reasonData = usrInf["reasonData"]; // Threat detection cause
let reasonCode = usrInf["reasonCode"]; // Event reason code
// Current threat event score
let currentThreatEventScore = usrInf["currentThreatEventScore"];
// Total threat events score
let threatEventsScore = usrInf["threatEventsScore"];
// Replace '<Context Key>' with your specific event context key
// let variable = usrInf["<Context Key>"];
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
xxxxxxxxxx
[[NSNotificationCenter defaultCenter] addObserverForName: @"BlockedScreenCaptureEvent" object:nil queue:nil usingBlock:^(NSNotification *org_note) {
__block NSNotification *note = org_note;
dispatch_async(dispatch_get_main_queue(), ^(void) {
// Message shown to the user
NSString *message = [[note userInfo] objectForKey:@"message"];
// Threat detection cause
NSString *reasonData = [[note userInfo] objectForKey:@"reasonData"];
// Event reason code
NSString *reasonCode = [[note userInfo] objectForKey:@"reasonCode"];
// Current threat event score
NSString *currentThreatEventScore = [[note userInfo] objectForKey:@"currentThreatEventScore"];
// Total threat events score
NSString *threatEventsScore = [[note userInfo] objectForKey:@"threatEventsScore"];
// Replace '<Context Key>' with your specific event context key
// NSString *variable = [[note userInfo] objectForKey:@"<Context Key>"];
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
}];
xxxxxxxxxx
const { ADDevEvents } = NativeModules;
const aDDevEvents = new NativeEventEmitter(ADDevEvents);
function registerToDevEvent(action, callback) {
NativeModules.ADDevEvents.registerForDevEvent(action);
aDDevEvents.addListener(action, callback);
}
export function registerToAllEvents() {
registerToDevEvent(
"BlockedScreenCaptureEvent",
(userinfo) => Alert.alert(JSON.stringify(userinfo))
var message = userinfo["message"] // Message shown to the user
var reasonData = userinfo["reasonData"] // Threat detection cause
var reasonCode = userinfo["reasonCode"] // Event reason code
// Current threat event score
var currentThreatEventScore = userinfo["currentThreatEventScore"]
// Total threat events score
var threatEventsScore = userinfo["threatEventsScore"]
// Replace '<Context Key>' with your specific event context key
// var variable = userinfo["<Context Key>"]
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
);
}
x
RegisterReceiver(new ThreatEventReceiver(), new IntentFilter("BlockedScreenCaptureEvent"));
class ThreatEventReceiver : BroadcastReceiver
{
public override void OnReceive(Context context, Intent intent)
{
// Message shown to the user
String message = intent.GetStringExtra("message");
// Threat detection cause
String reasonData = intent.GetStringExtra("reasonData");
// Event reason code
String reasonCode = intent.GetStringExtra("reasonCode");
// Current threat event score
String currentThreatEventScore = intent.GetStringExtra("currentThreatEventScore");
// Total threat events score
String threatEventsScore = intent.GetStringExtra("threatEventsScore");
// Replace '<Context Key>' with your specific event context key
// String variable = intent.GetStringExtra("<Context Key>");
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
}
x
NSNotificationCenter.DefaultCenter.AddObserver(
(NSString)"BlockedScreenCaptureEvent", // Threat-Event Identifier
delegate (NSNotification notification)
{
// Message shown to the user
var message = notification.UserInfo.ObjectForKey("message");
// Threat detection cause
var reasonData = notification.UserInfo.ObjectForKey("reasonData");
// Event reason code
var reasonCode = notification.UserInfo.ObjectForKey("reasonCode");
// Current threat event score
var currentThreatEventScore = notification.UserInfo.ObjectForKey("currentThreatEventScore");
// Total threat events score
var threatEventsScore = notification.UserInfo.ObjectForKey("threatEventsScore");
// Replace '<Context Key>' with your specific event context key
// var variable = notification.UserInfo.ObjectForKey("<Context Keys>");
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
);
xxxxxxxxxx
window.broadcaster.addEventListener("BlockedScreenCaptureEvent", function(userInfo) {
var message = userInfo.message // Message shown to the user
var reasonData = userInfo.reasonData // Threat detection cause
var reasonCode = userInfo.reasonCode // Event reason code
// Current threat event score
var currentThreatEventScore = userInfo.currentThreatEventScore
// Total threat events score
var threatEventsScore = userInfo.threatEventsScore
// Replace '<Context Key>' with your specific event context key
// var variable = userInfo.<Context Keys>
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
});
x
import 'dart:async';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
class PlatformChannel extends StatefulWidget {
const PlatformChannel({super.key});
State<PlatformChannel> createState() => _PlatformChannelState();
}
class _PlatformChannelState extends State<PlatformChannel> {
// Replace with your EventChannel name
static const String _eventChannelName = "BlockedScreenCaptureEvent";
static const EventChannel _eventChannel = EventChannel(_eventChannelName);
void initState() {
super.initState();
_eventChannel.receiveBroadcastStream().listen(_onEvent, onError: _onError);
}
void _onEvent(Object? event) {
setState(() {
// Adapt this section based on your specific event data structure
var eventData = event as Map;
// Example: Accessing 'externalID' field from the event
var externalID = eventData['externalID'];
// Customize the rest of the fields based on your event structure
String message = eventData['message']; // Message shown to the user
String reasonData = eventData['reasonData']; // Threat detection cause
String reasonCode = eventData['reasonCode']; // Event reason code
// Current threat event score
String currentThreatEventScore = eventData['currentThreatEventScore'];
// Total threat events score
String threatEventsScore = eventData['threatEventsScore'];
// Replace '<Context Key>' with your specific event context key
// String variable = eventData['<Context Keys>'];
});
}
// Your logic goes here (Send data to Splunk/Dynatrace/Show Popup...)
}
Using Appdome, there are no development or coding prerequisites to build secured iOS Apps by using Prevent Screen Sharing Scams & Malware > Block AirPlay. There is no SDK and no library to code or implement in the app and no gateway to deploy in your network. All protections are built into each app and the resulting app is self-defending and self-protecting.
Releasing and Publishing Mobile Apps with Prevent Screen Sharing Scams & Malware > Block AirPlay
After successfully securing your app by using Appdome, there are several available options to complete your project, depending on your app lifecycle or workflow. These include:
- Customizing, Configuring & Branding Secure Mobile Apps.
- Deploying/Publishing Secure mobile apps to Public or Private app stores.
- Releasing Secured Android & iOS Apps built on Appdome.
Related Articles:
How to Detect GoldPickaxe in iOS Apps Using AI
How to Protect Android Users from Screen Sharing Scams & Malware Using AI
How to Detect Keylogging Attacks Against Mobile Apps Using AI
How Do I Learn More?
If you have any questions, please send them our way at support.appdome.com or via the chat window on the Appdome platform.
Thank you!
Thanks for visiting Appdome! Our mission is to secure every app on the planet by making mobile app security easy. We hope we’re living up to the mission with your project.
